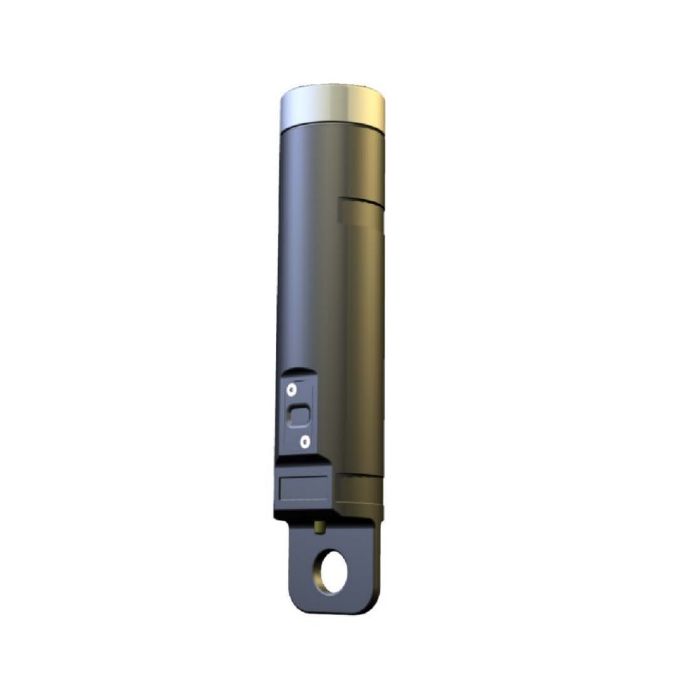

Aanderaa 4531 Oxygen Optode Sensors

The Aanderaa 4531 Oxygen Optode is a compact, fully integrated sensor for measuring the O2 concentration and temperature.

Features

  • Optical lifetime-based luminescence quenching measurement principle
  • Long time stability with red reference LED
  • Available with integrated cable or wet-mate connector termination
Your Price Call
Stock Check Availability

Overview
The Aanderaa Oxygen Optodes are based on the ability of selected substances to act as dynamic fluorescence quenchers. The fluorescent indicator is a special platinum porphyrin complex embedded in a gas-permeable foil that is exposed to the surrounding water. The sensor has an incorporated temperature thermistor, which enables linearization and temperature compensation of the phase measurements to provide the absolute O2 concentration.

Mechanics
A black optical isolation coating protects the complex from sunlight and fluorescent particles in the water. This sensing foil is mounted on a glass window, providing optical sampling from inside a watertight housing. The sensing foil is excited by modulated blue light; the sensor measures the phase of the returned red light. For improved stability, the optode also performs a reference phase reading using a red LED that does not produce fluorescence in the foil.

Ranges
The Oxygen Optode outputs data in RS-232 and analog 0-5V, 0-10V or 4-20mA. The sensor can present the O2 concentration in µM, Air Saturation in % and Temperature in °C.

Questions & Answers
No Questions
Did you find what you were looking for?

Select Options

  Products 0 Item Selected
Part #
Description
Price
Stock
Quantity
Aanderaa 4531 Oxygen Optode Sensors
0974531A
4531 Oxygen Optode Sensor, 0-5V output (termination/cable sold separately)
Request Quote
Check Availability
Aanderaa 4531 Oxygen Optode Sensors
0974531B
4531 Oxygen Optode Sensor, 0-10V output (termination/cable sold separately)
Request Quote
Check Availability
Aanderaa 4531 Oxygen Optode Sensors
0974531C
4531 Oxygen Optode Sensor, 4-20mA output (termination/cable sold separately)
Request Quote
Check Availability
Aanderaa 4531 Oxygen Optode Sensors
0974531D
4531 Oxygen Optode Sensor, RS-232 output (termination/cable sold separately)
Request Quote
Check Availability
