AMS 5/8" Threaded Multi-Stage Sludge Sampler

The AMS 5/8" Threaded Multi-Stage Sludge and Sediment Sampler lets you easily collect sediment or sludge with a technically enhanced core tip and cap.

Features

  • Valved core tip fills the sampler without losing the sample upon retrieval
  • Flap cap allows excess air and water to escape through the top of the sampler
  • Up to 4 optional 12" sections can be added to the sampler
Your Price $696.85
Stock Drop Ships From Manufacturer

Overview
The AMS 5/8" Threaded Multi-Stage Sludge Sampler "valved core tip" fills the instrument without losing the sample upon retrieval. The sampler uses a disposable plastic soil catcher that fits on the end of a 2" x 12" plastic liner. The core tip allows the plastic soil core catcher and liner to fit snugly over the lip of the core tip. Once the soil core catcher and liner are placed on the core tip, they are loaded into a standard multi-stage base section and screwed together.

Mechanics
During deployment, the flap cap opens and allows excess air and water to escape through the top of the sampler, eliminating pressure buildup. The sediment enters and fills the liner. When the sampler is lifted, the flap closes and creates suction to assist the soil core catcher in retaining the sample. Up to 4 optional 12" sections can be added.

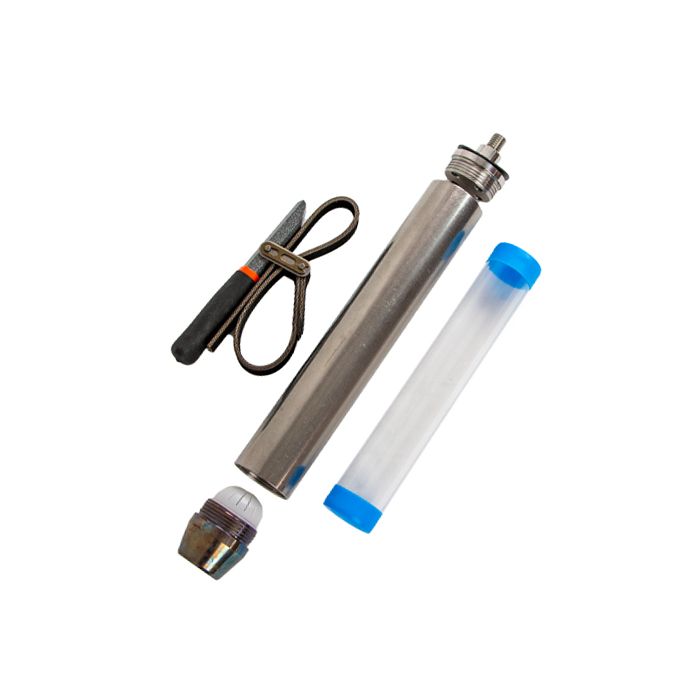

  • (1) Multi-stage flap check cap
  • (1) Multi-stage sludge core tip
  • (1) 12" multi-stage SCS base
  • (1) 2" x 12" plastic liner
  • (2) Plastic end caps
  • (1) 2" soil core catcher
  • (1) Universal slip wrench
