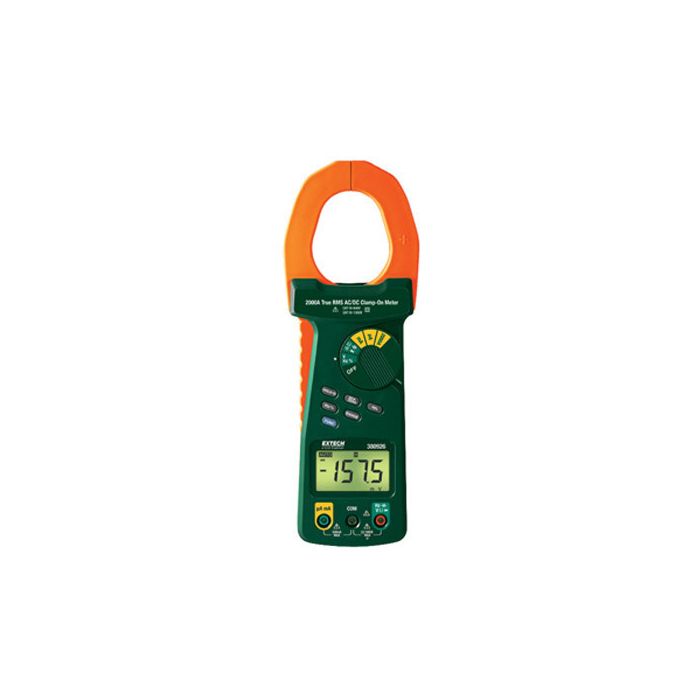

Extech 2000A True RMS AC/DC Clamp Meter
The Extech 2000A True RMS AC/DC Clamp Meter collects current measurements up to 2000A through the clamp and 400mA via test leads.
Features
- AC/DC voltage, resistance,capacitance, diode and duty cycle measurements
- 2" (50mm) jaws accommodate one 200MCM or two 500MCM cables
- Large 4000 count backlit display for high resolution and easy viewing in a variety of settings
Your Price
$324.00
Stock
Check
Availability
Fondriest Exclusives
- Free ground shipping
- Expedited repair and warranty service
- Lifetime technical support
- More
Overview
The Extech 380926 features full-range multimeter functions with high resolution up to 0.1mV with a CAT IV-600V Safety Rating. Multimeter functions include AC/DC voltage, resistance,capacitance, diode and duty cycle. Current measurements can be taken up to 2000A through the clamp and 400mA via the test leads. A heavy-duty ABS case with a built-in stand and rugged clamps provides durability.
Benefits
Other features include a large 4000-count backlit display that allows readings in dark settings, 2" jaws that accommodate one 200MCM or two 500MCM cables, and relative measurements and data hold features.
- DC/AC current (clamp) range: 400A, 2000A
- DC/AC current (clamp) maximum resolution: 0.1A
- DC/AC current (clamp) basic accuracy: ±(2% + 5d)
- DC/AC current (DMM) range: 400μA, 4000μA, 40mA, 400mA
- DC/AC current (DMM) maximum resolution: 0.1μA
- DC/AC current (DMM) basic accuracy: ±(1.2% + 5d)
- DC voltage range: 400mV, 4.0V, 40V, 400V, 1000V
- DC voltage maximum resolution: 0.1mV
- DC voltage basic accuracy: ±(1% + 2d)
- AC voltage range: 4V, 40V, 400V, 1000V
- AC voltage maximum resolution: 1mV
- AC voltage basci accuracy: ±(1.2% + 5d)
- Capacitance range: 50nF, 500nF, 5.0μF, 50μF
- Capactitance maximum resolution: 10pF
- Capcacitance basic accuracy: ±(3% + 5d)
- Resistance range: 400Ω, 4.0kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ
- Resistance maximum resolution: 0.1Ω
- Resistance basic accuracy: ±(1% + 5d)
- Frequency range: 5Hz, 50Hz, 500Hz, 5kHz, 50kHz, 100kHz
- Frequency maximum resolution: 0.01Hz
- Frequency basic accuracy: ±(1% + 5d)
- Duty cycle range: 1% to 99%
- Duty cycle maximum resolution: 0.1%
- Duty cycle basic accuracy: ±(1% + 5d)
- Diode check: yes
- Continuity: yes
- Dimensions/weight: 10 x 2.9 x 1.5" (255x73x38mm) / 14oz. (380g)
- (1) Set of test leads
- (1) 9V battery
Questions & Answers
Select Options
Products
0 Item Selected
Part #
Description
Price
Stock
Quantity
380926
2000A True RMS AC/DC clamp meter
$324.00
Check Availability
Notice: At least 1 product is not available to purchase online
