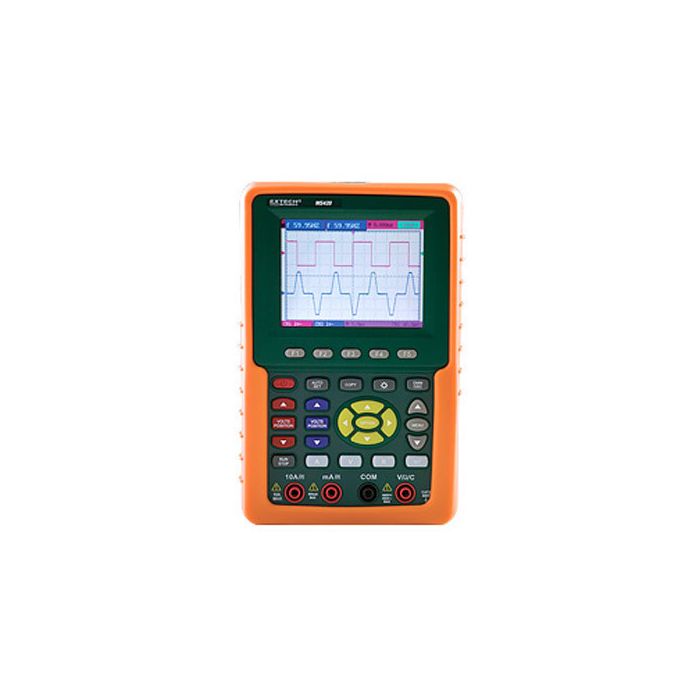

Extech 20MHz 2-Channel Digital Oscilloscope
The Extech 2-Channel Digital Oscilloscope acts as a true RMS multimeter and oscilloscope that guarantees a stable display of virtually any waveform.
Features
- 20MHz bandwidth
- Peak detect function for 50ns glitch capture
- FFT function to view component frequencies
Your Price
$1,099.00
Stock
Check
Availability
Fondriest Exclusives
- Free ground shipping
- Expedited repair and warranty service
- Lifetime technical support
- More
The Extech 2-Channel Digital Oscilloscope's dual channel optimizes the position, range, timebase, and triggering to guarantee a stable display of virtually any waveform. The multimeter automatically measures twenty different functions including frequency, cycle, average, peak to peak, and RMS. Up to 4 waveforms can be stored and recalled at one time.
Multiple modes ensure the most accurate data possible: average mode for smoothing waveforms, and persistence mode for observing dynamic signals. Autoscale automatically configures trigger mode where the oscilloscope can measure a waveform without a triggering condition. XY mode and FFT function help the viewer understand the relationship between channels one and two.
Other features include 20MHz bandwidth, waveform math, and a real time clock. The included USB interface and compatible software enable the user to transfer waveforms and data to any PC.
- Display size: 3.8" (96mm) color LCD; 320 x 240 pixels
- Bandwidth: 20MHz
- Real time sample rate: 100MS/s
- Risetime: 17.5ns
- Channels: 2
- Record length: 6K points per channel
- Glitch capture: 50ns
- Vertical sensitivity: 5mV to 5V/div
- Vertical resolution: 8 bits
- Timebase range: 5ns to 5s/div
- Trigger modes: Free Run, Single Shot, Edge, Video
- Trigger source: CH1, CH2
- Trigger coupling: AC, DC
- Input impedance: 1MΩ/20pF
- Max Input voltage: 400V (peak)
- Cursor measurement: Voltage and time
- AC/DC voltage: 400mV, 4V, 40V, 400V
- AC/DC current: 40mA, 300mA, 20A
- Resistance: 400Ω, 4kΩ, 40kΩ, 400kΩ, 40MΩ
- Capacitance: 51.2nF to 100μF
- Diode and continuity: Yes
- Power supply: 6 hours Li-ion rechargeable battery; AC Adaptor/Charger
- Dimensions/weight: 7 x 4.4 x 1.6" (180 x 113 x 40mm) / 24.3oz (690g)
- (1) Digital Oscilloscope
- (2) Oscilloscope probes (1X/10X)
- (1) Test leads
- (1) Windows 95/98/NT/2000/ME/XP compatible USB software and cable
- (1) AC adaptor/ charger
- (1) Hard carrying case
Questions & Answers
Select Options
Products
0 Item Selected
Part #
Description
Price
Stock
Quantity
MS420
20MHz 2-Channel digital oscilloscope
$1,099.00
Check Availability
Notice: At least 1 product is not available to purchase online
