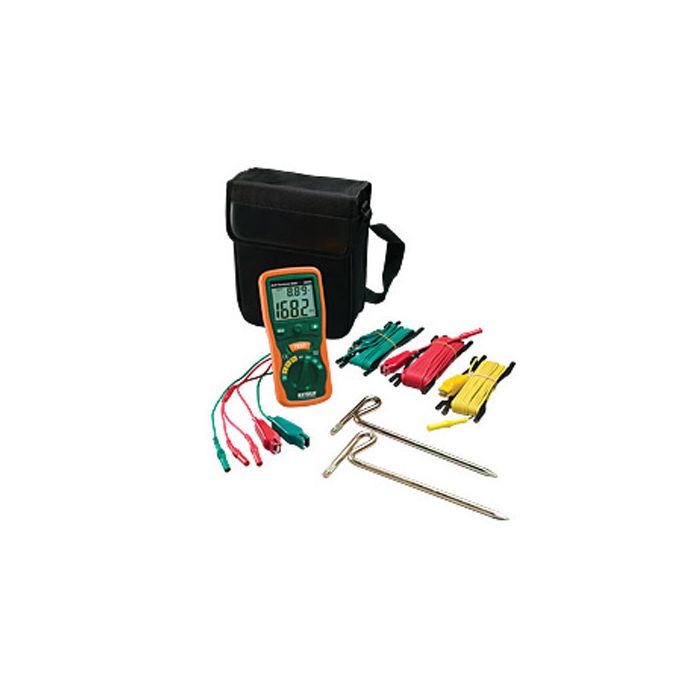

Extech 382252 Earth Ground Resistance Tester Kit

The Extech Earth ground Resistance Tester Kit includes all hardare necessary to measure earth ground in 3 ranges from 20 to 2000Ω.

Features

  • Verify that electronic devices are properly grounded
  • Overrange and low battery indication
  • AC/DC Voltage, Resistance, and Continuity
Your Price $319.00
Stock Check Availability

The Earth Ground Resistance Tester Kit includes everything necessary to measure earth grounds from 20 to 2000Ω in three separate ranges; earth voltage, 0-750 VAC, and 0-1000 VDC.

A dual display with backlight provides a user friendly and field rugged digital display of data during testing. Measuring earth grounds can be done anywhere and anytime with this field rugged handheld meter kit.

  • Earth ground resistance ranges: 20Ω/ 200Ω/2000Ω
  • Basic accuracy: ±(2%rdg+2d)
  • Resolution: 0.01Ω/ 0.1Ω/1Ω
  • Test current/frequency: <2.5mA / 820Hz
  • AC earth voltage/frequency: 0 to 200VAC / 50 to 400Hz
  • Accuracy: ±(3%rdg+3d)
  • DC voltage: 0 to 1000V
  • Accuracy: ±(0.8%rdg+3d)
  • Resistance: 0 to 200kΩ
  • Accuracy: ±(1%rdg+2d)
  • Continuity: 40Ω
  • Power supply: Six 1.5V ‘AA’ Batteries
  • Dimensions: 7.9 x 3.6 x 2" (200 x 92 x 50mm)
  • Weight: 1.5lbs (700g) (meter only)
  • (1) Handheld display
  • (6) AA batteries
  • (2) Multimeter test leads
  • (3) Earth ground test leads
  • (2) Auxiliary earth bars
  • (1) Carrying case
