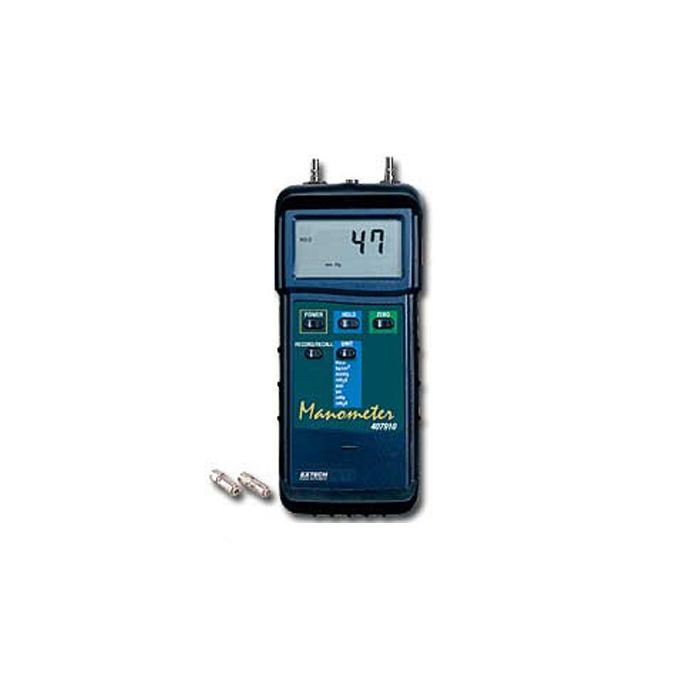

Extech 407910 Heavy Duty Differential Pressure Manometer
The Extech Heavy Duty Differential Pressure Manometer displays 8 types of pressure units: mbar, psi,kg/cm2, mmHg, inHg, mH2O, inH2O, and atm.
Features
- Dual differential inputs with internal sensors
- Wide (±802 inches of water) measurement range
- Metal input connections with two quick-disconnect fittings
Starting At
$314.00
Stock
Check
Availability
Fondriest Exclusives
- Free ground shipping
- Expedited repair and warranty service
- Lifetime technical support
- More
Overview
The Extech Heavy Duty Differential Pressure Manometer offers a wide range of dual inputs and multiple units with an RS-232 interface. The meter displays 8 types of pressure units: mbar, psi, kg/cm2, mmHg, inHg, mH2O, inH2O, and atm.
- Circuit: custom one-chip LSI microprocessor circuit
- Display: 0.6" (16mm) 2000 count LCD with function indicators
- Units of measure: mBAR, psi, kg/cm2, mm Hg, inches Hg, meter H2O, inches H2O and Atmospheres
- Input circuit: differential inputs (P1 and P2)
- Data hold: freezes displayed reading
- Sensor: built-in piezoelectric sensors
- Zero adjust: front panel push-button
- Sample rate: 0.8 sec. (approx.)
- Compatibility: air or non-corrosive and non-ionized gas
- Auto power OFF: meter turns off after approx. 10 minutes to conserve energy
- Data output: RS-232 PC serial interface
- Ambient conditions: 32 to 122 F (0 to 50 C);< 80% RH
- Battery power: 9V alkaline battery
- Power consumption: 6mA DC (approx.)
- Dimensions: 7.1 x 2.8 x1.3" (180 x 72 x 32 mm)
- Weight: 0.76 lbs (345 g)
- Warranty: 1 year
- (1) Meter
- (2) Quick disconnect-fittings
- (1) Protective rubber holster with stand
- (1) 9V battery
- (1) Carrying case
Questions & Answers
Select Options
Products
0 Item Selected
Part #
Description
Price
Stock
Quantity
407910
Heavy duty differential pressure manometer, 29psi
$314.00
Check Availability
