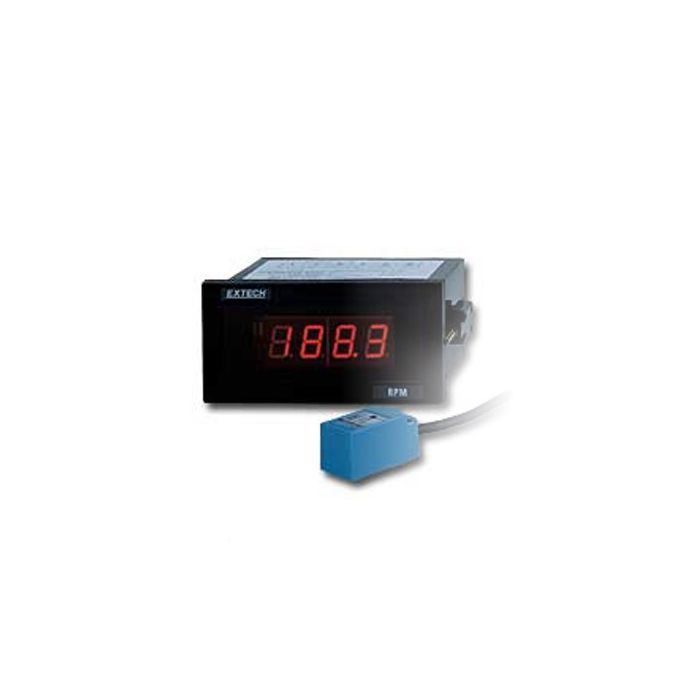

Extech 461950 Panel Mount Tachometer
The Extech Panel Mount Tachometer uses proximity or photoeclectric sensors to continously and accurately measure RPM from 5 to 99,990rpm.
Features
- Continuous & accurate readings from 5 to 99,990 rpm
- Large 4 digit LED display updates once per second (rpm greater than 60)
- Choice of two sensor pickup types
Starting At
$209.00
Stock
Check
Availability
Fondriest Exclusives
- Free ground shipping
- Expedited repair and warranty service
- Lifetime technical support
- More
The Extech Panel Mount Tachometer provides continuous and accurate readings from 5 to 99,990rpm using proximity or photoelectric sensors. The unique design permits RPM measurements of a one hold gear or disk eliminating the need for special gears. A pulse is measured when a ferrous object passes by the sensor. The proximity sensor is designed for target distance of 0.1 inch and covers a range to 36,000rpm (600Hz). The photoelectric sensor has a target distance of 0.4 inches with a range of 15,000rpm (250Hz). Both encapsulated sensors include a 6 foot cable.
- Range: 5 to 99,990 RPM
- Resolution: 0.1 (5 to 999.9); 1 (1000 to 9999); 10 (10.000 to 99,990)
- Accuracy: 0.05% + digit (of reading)
- Display: 0.5 " (13mm) 4-digit (9999 count) LED display
- Display update rate: once per second
- Power: 110/220VAC; 50/60Hz +/-15%
- Panel cutout dimensions: 3.62 x 1.77" (92 x 45mm)
- Bezel dimensions: 3.78 x 1.89 x 2.36" (96 x 48 x 60mm)
- Meter dimensions: 3.61 x 1.66 x 3.54" (92 x 42 x 90mm)
- Weight: 13.9 oz. (397 g)
- Warranty: 1 year
- (1) Tachometer
Questions & Answers
Select Options
Products
0 Item Selected
Part #
Description
Price
Stock
Quantity
461950
Panel mount tachometer, display only
$209.00
Check Availability
Notice: At least 1 product is not available to purchase online
