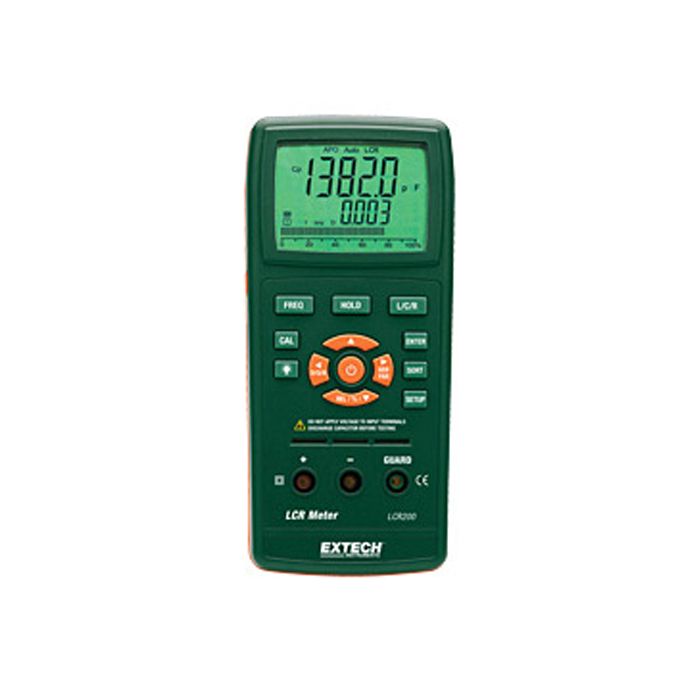

Extech 5-Frequency Passive Component LCR Meter
The Extech 5-Frequency Passive Component LCR Meter measures inductance, capacitance, and resistance.
Features
- Auto select measurement function with 1kHz default test frequency
- Five test frequencies
- Set high/low limits using absolute values or percentage limits
Your Price
$299.00
Stock
Check
Availability
Fondriest Exclusives
- Free ground shipping
- Expedited repair and warranty service
- Lifetime technical support
- More
The Extech Passive Component LCR meter accurately measures capacitors, inductors and resistors using the test frequencies of 100Hz, 120Hz, 1 kHz, 10kHz, and 100kHz. The dual display will simultaneously display the associated quality factor, dissipation or phase angle value using a series or parallel equivalent circuit. The meter includes 5 frequencies, including an auto select function with 1kHz default test frequency. User select high/low limits using the absolute values or percentage limits. Open and short calibration removes unwanted stray impedances from the measurement.
- LCD size: 66.8x52.8mm with green backlight
- Test frequency: 100Hz, 120Hz, 1KHz, 10 KHz, 100KHz
- Dissipation factor: 0.000 to 1999
- Quality factor: 0.000 to 1999
- θ Measurement: +/-90°
- Sorting tolerance: +/-0.25%, +/-0.5%, +/-1%, +/-2%, +/-5% +/-10%, +/-20%, +80% -20%
- Calibration: open/short calibration
- Data output: RS232/USB PC computer interface
- Power off: auto shut off saves battery life or manual off by push button
- Operating temperature: 0 to 50 °C
- Operating humidity: less than 85% RH
- Power supply: 006P DC 9V battery
- Power consumption: DC 35mA approx.
- Dimension: 193x88x41mm
- Weight: 385g
- (1) LCR meter
- (1) Pair of test leads
- (1) 9V battery
- (1) Carrying case
Questions & Answers
Select Options
Products
0 Item Selected
Part #
Description
Price
Stock
Quantity
LCR200
5-frequency passive component LCR meter
$299.00
Check Availability
