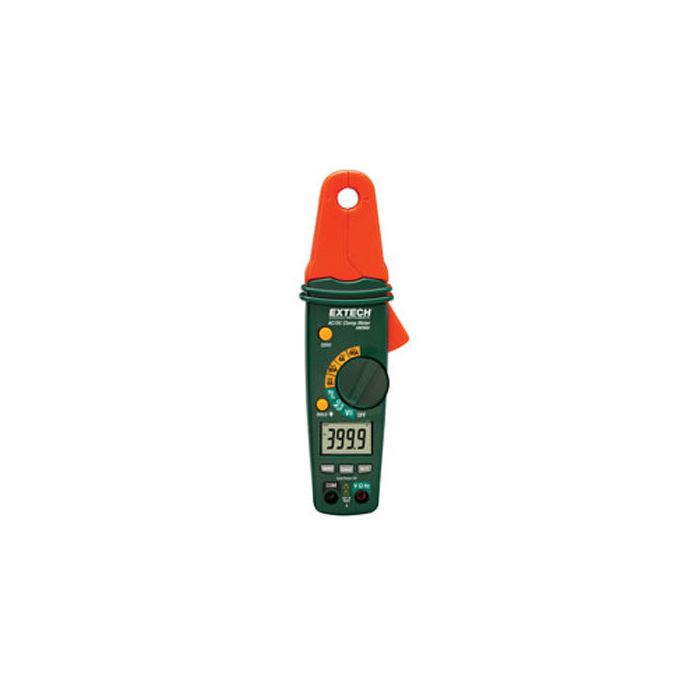

Extech 80A Mini AC/DC Clamp Meter

The Extech 80A Mini AC/DC Clamp Meter is designed for high-resolution current measurements in hard-to-reach locations.

Features

  • Small diameter elongated jaw
  • Diode test/continuity beepe
  • Data Hold
Your Price $169.00
Stock Check Availability

Overview
The Extech 80A AC/DC Clamp Meter features a small diameter elongated jaw that opens to 0.5" for high-resolution current measurements in hard-to-reach locations. The meter measures AC/DC voltage, resistance, frequency, capacitance, and duty cycle. It also includes a diode test/continuity beeper to alert users.

  • AC current range: 4A, 80A
  • AC current resolution: 1mA
  • AC current accuracy: ±(2.5% + 5d)
  • DC current range: 4A, 80A
  • DC current resolution: 1mA
  • DC current accuracy: ±(2.5% + 4d)
  • AC voltage range: 400mV to 600V
  • AC voltage resolution: 0.1mV
  • AC voltage accuracy: ±(2.0% + 4d)
  • DC voltage range: 400mV to 600V
  • DC voltage resolution: 0.1mV
  • DC voltage accuracy: ±(1.5% + 3d)
  • Resistance range: 400Ω to 40MΩ
  • Resistance resolution: 0.1Ω
  • Resistance accuracy: ±(1.5% + 2d)
  • Frequency range: 5Hz to10MHz
  • Frequency resolution: 0.001Hz
  • Frequency accuracy: ±(1.2% + 3d)
  • Duty cycle range: 5 to 99.9%
  • Duty cycle resolution: 0.1%
  • Duty cycle accuracy: ±(1.2% + 3d)
  • Dimensions: 8.3 x 2.8 x 1.5" (210 x 70 x 37mm)
  • Weight: 7oz (200g)
  • (1) Meter
  • (1) Set of test leads
  • (2) 1.5V AAA Batteries
  • (1) Carrying case
