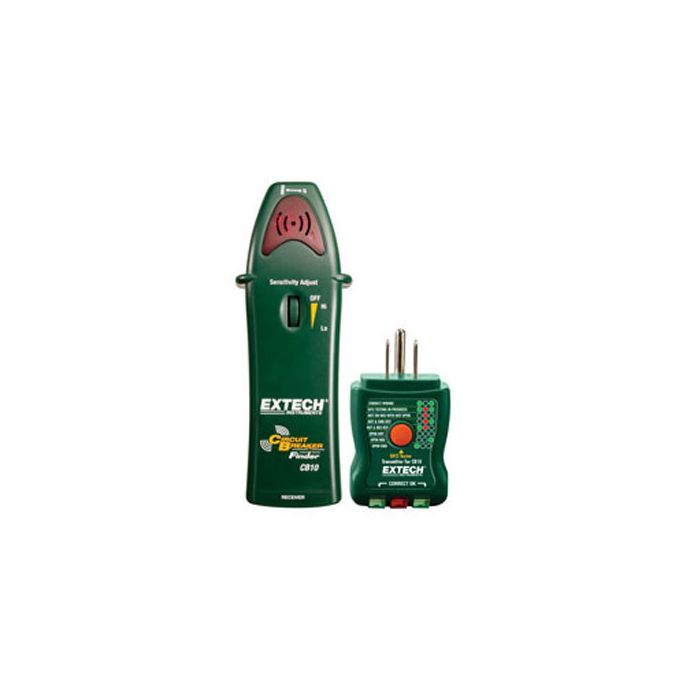

Extech AC Circuit Breaker Finder/Receptacle Tester
The Extech AC Circuit Breaker Finder/Receptacle Tester locates circuit breakers and tests receptacle wiring.
Features
- Audible and visual circuit breaker indication
- Tests reversed/open connections
- Variable Sensitivity adjustment to pinpoint correct circuit breaker
Your Price
$51.99
Stock
Check
Availability
Fondriest Exclusives
- Expedited repair and warranty service
- Lifetime technical support
- More
Overview
The Extech AC Circuit Breaker Finder/Receptacle Tester quickly locates 110V to 125VAC circuit breakers and fuses. The variable sensitivity adjustment is used to pinpoint correct circuit breakers. Bright red and green LED lights indicate if the receptacle is correctly wired or six fault conditions. To test, simply plug the GFCI transmitter into an outlet and trace for the correct breaker at the electrical box. The transmitter tests for reversed or open connections.
Applications
Applications include locating branch circuit breakers without flipping breakers to other circuits, confirming proper wiring during electrical wiring installation or repair, and testing receptacle ground fault operation. The transmitter and receiver conveniently snap together for easy storage
- Dimensions (receiver): 6.4x2.2x1.5" (162x55x38)
- Weight (receiver): 4oz (113g)
- Dimensions (transmitter): 3.25x1.75x1" (83x44x25mm)
- Weight (transmitter): 1.6oz (45g)
- (1) Receiver
- (1) GFCI Transmitter
- (1) 9V Battery for reliever
Questions & Answers
Select Options
Products
0 Item Selected
Part #
Description
Price
Stock
Quantity
CB10
AC circuit breaker finder/receptacle tester
$51.99
Check Availability
Notice: At least 1 product is not available to purchase online
