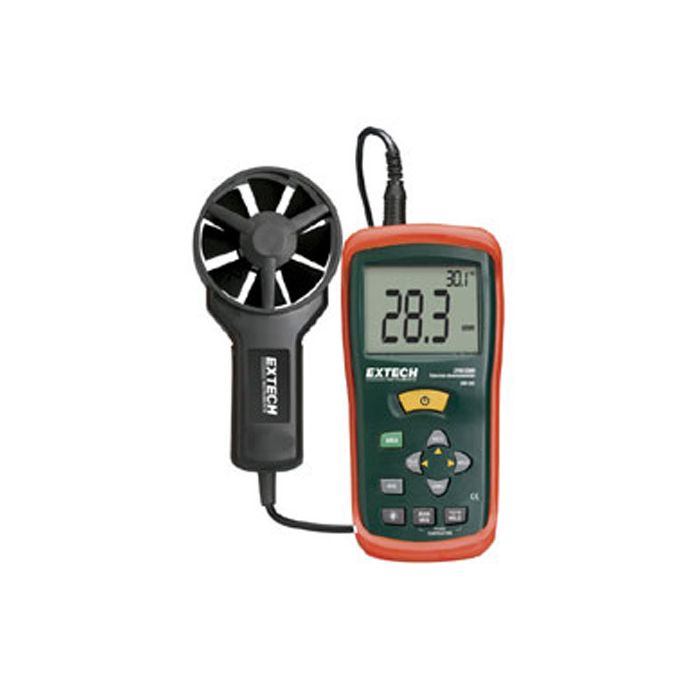

Extech CFM/CMM Mini Thermo-Anemometer
The Extech CFM/CMM Mini Thermo-Anemometer simultaneously displays ambient temperature, airflow, and air velocity.
Features
- 20 point average function for air flow
- Up to 8 area dimensions are stored in the meter's internal memory
- 3% velocity accuracy
Starting At
$199.00
Stock
Check
Availability
Fondriest Exclusives
- Expedited repair and warranty service
- Lifetime technical support
- More
Overview
The Extech CFM/CMM Mini Thermo-Anemometer simultaneously displays ambient temperature, airflow, and air velocity on a large backlit LCD. Up to 8 easy-to-set area dimensions are stored in the meter's internal memory. Additionally, model AN200 includes a built-in non-contact IR thermometer that measures remote surface temperatures to 500°F with an 8:1 distance-to-spot ratio and laser pointer.
Applications
Use the Extech CFM/CMM Mini Thermo-Anemometer for HVAC installation, repair diagnostic and optimization, fume hood testing, installation and verification, ventilation system installation, servicing and analysis, environmental wind and temperature testing/analysis, automobile aerodynamic testing, and plant/facilities maintenance.
- Air velocity m/s range: 0.40 to 30.00 m/s
- Air velocity m/s resolution: 0.01 m/s
- Air velocity m/s basic accuracy: ±3% m/s
- Air velocity km/h range: 1.4 to 108.0 km/h
- Air velocity km/h resolution: 0.1 km/h
- Air velocity km/h basic accuracy: ±3% km/h
- Air velocity ft/min range: 80 to 5906 ft/min
- Air velocity ft/min resolution: 1 ft/min
- Air velocity ft/min basic accuracy: ±3% ft/min
- Air velocity mph range: 0.9 to 67.2 mph
- Air velocity mph resolution: 0.1 mph
- Air velocity mph basic accuracy: ±3% mph
- Air velocity knots range: 0.8 to 58.3 knots
- Air velocity knots resolution: 0.1 knots
- Air velocity knots basic accuracy: ±3% knots
- Air temperature range: 14 to 140˚F (-10 to 60˚C)
- Air temperature resolution: 0.1˚F/˚C
- Air temperature basic accuracy: ±6.0˚F (3˚C)
- InfraRed temperature range: -58 to -4˚F (-50 to -20˚C), -4 to 500˚F (-20 to 260˚C)
- InfraRed temperature resolution: 0.1˚F/˚C, 1˚F/˚C
- InfraRed temperature basic accuracy: ±9.0˚F (5.0˚C), ±2% reading or±2˚F (˚C)whichever is greater
- Airflow (AN100) range: 0 to 9999 CMM (m3/min), 0 to 9999 CFM (ft3/min)
- Aiflow (AN100) resolution: 0.1
- Airflow (AN200) range: 0 to 999,999 CMM (m3/min), 0 to 999,999 CFM (ft3/min)
- Airflow (AN200) resolution: 0.1
- Dimensions: 7 x 2.9 x 1.3" (178 x 74 x 33mm)
- Weight: 1.6lbs (700g)
- (1) Thermo-anemometer
- (1) Vane sensor on 3.9ft (120cm) cable
- (1) 9 V battery
- (1) Protective rubber holster
- (1) Case
