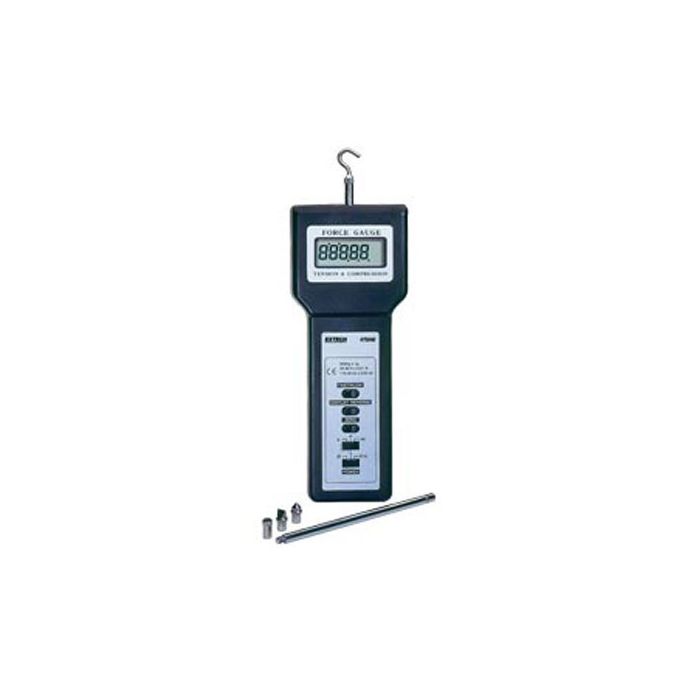

Extech Digital Force Gauge

The Extech Digital Force Gauge provides push/pull measurements in kg, lbs, oz, and newton units.

Features

  • Exclusive load cell measurement transducer
  • Overrange, low battery and advanced function indication
  • Selectable fast/slow response
Starting At $464.00
Stock Check Availability

Overview
The Extech Digital Force Gauge uses an exclusive load cell measurement transducer to calculate push/pull data in kilograms, pounds, ounces, or newton units. The 5-digit digital LCD features a reversible display to match any viewing angle. The gauge includes:

  • Selectable fast/slow response,
  • Zero adjust push-button and peak hold switch,
  • Overrange, low battery, and advanced function indication.

Model Options
Model 475040 features 5000g, 176oz, and 49 newtons measurement capacity. Model 475044 features 20kt, 44lbs, and 196 newtons push/pull measurement capacity. This instrument is ideal for a wide variety of applications in the electronics, automotive, chemical, plastics, and machinery industries.

475040



  • Range: 176 oz, 5000g, 49 newtons
  • Accuracy: ±(0.4% + 1 digit)
  • Resolution: 0.05oz, 1g, 0.01 newtons
  • Overload capacity: 10kg
  • Display: 5 digits, 0.4" (10mm) LCD display
  • Update rate: Fast mode 0.2 secs; Slow mode 0.6 secs.
  • Full scale deflection: 2.00mm
  • Transducer type: load cell
  • Peak hold: freezes max reading on display
  • Power supply: six 1.5V AA (UM-3) batteries or DC 9V adaptor (not included)
  • Weight: 1.2 lbs (551g)
  • Size: 8.9 x 3.3 x 1.5" (227 x 83 x 39mm)



475044



  • Range: 44 lbs, 20kg, 196 Newtons
  • Accuracy: ±(0.5% + 2 digit)
  • Resolution :0.01lbs, 0.01kg, 0.05 Newtons
  • Overload capacity: 30kg
  • Display: 5 digits, 0.4" (10mm) LCD display
  • Update rate: Fast mode 0.2 secs; Slow mode 0.6 secs.
  • Full scale deflection: 2.00mm
  • Transducer type: load cell
  • Peak hold: freezes max reading on display
  • Power supply: six 1.5V AA (UM-3) batteries or DC 9V adaptor (not included)
  • Weight: 1.2 lbs (551g)
  • Size: 8.9 x 3.3 x 1.5" (227 x 83 x 39mm)
  • (1) Gauge
  • (1) Hook adapter for tension
  • (1) Flat compression adapter
  • (1) Cone compression adapter
  • (1) Chisel head compression adapter
  • (1) 5" Extension rod
  • (6) AA Batteries
  • (1) Carrying case
