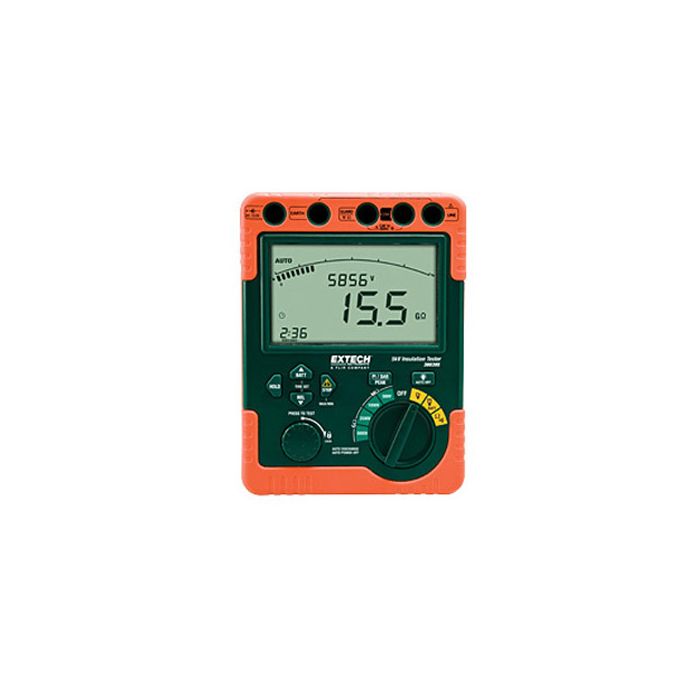

Extech Digital High Voltage Insulation Tester

The Extech Digital High Voltage Insulation Tester is capable of generating test voltages up to 5 kV to test electrical insulators.

Features

  • Tests voltages of 500V, 1000V, 2500V, and 5000V
  • Measures insulation resistance to 60G Ω
  • 1 to 15 minute timer function for IR measurements
Starting At $989.00
Stock Check Availability

The Extech Digital High Voltage Insulation Tester is capable of reading insulation resistances up to 60 GigaOhms. The handheld device can generate voltages up to 5000 VDC to test electrical insulation, and can also be used as a standard ohmmeter to measure resistances up to 6000 ohms.

The unit easily toggles between available modes, including its four separate test voltage ranges for measuring extremely high resistances. The meter also includes built-in functions for computing the polarization index or dielectric absorption ratio of a dielectric material.

  • Test voltage: 500V/1000V/2500V/5000V
  • Insulation resistance: 0 to 6MΩ , 0 to 60MΩ , 0 to 600MΩ , 0 to 6GΩ , 0 to 60GΩ
  • Accuracy: ±2.5% of reading
  • AC/DC voltage: 0 to 600V
  • AC/DC accuracy: ±1% of reading
  • Resistance: 0 to 600Ω
  • Resistance accuracy: ±1.5% of reading
  • Continuity: 50Ω
  • Power: 8 type C batteries
  • Dimensions: 7.8 x 5.8 x 3.4" (198 x 148 x 86mm)
  • Weight: 3.2lbs (1438g)
  • (1) High voltage megohmmeter
  • (8) C batteries
  • (1) AC adapter
  • (2) Test leads
  • (1) Heavy duty carrying case
Questions & Answers
No Questions
Did you find what you were looking for?

Select Options

  Products 0 Item Selected
Part #
Description
Price
Stock
Quantity
Extech Digital High Voltage Insulation Tester
380395
Digital high voltage insulation tester, 120V
$989.00
Check Availability
Extech Digital High Voltage Insulation Tester
380396
Digital high voltage insulation tester, 220V European plug
$989.00
Check Availability
