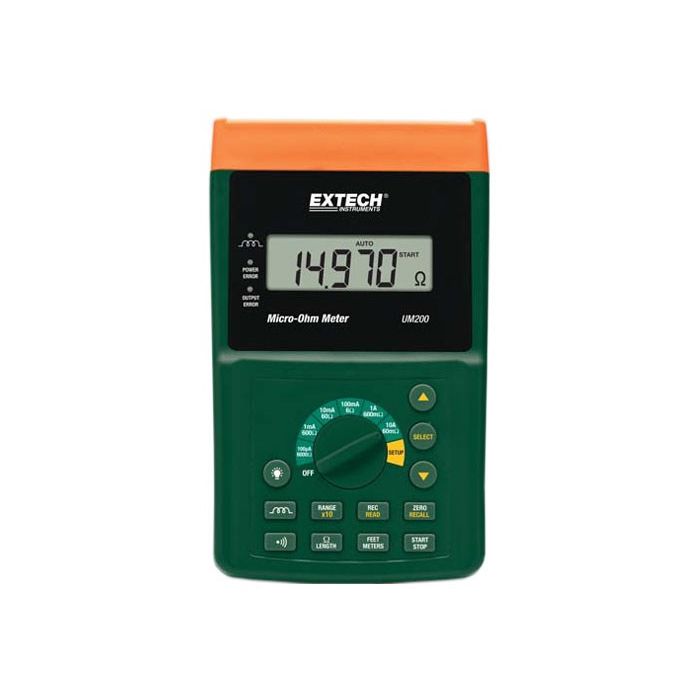

Extech High Resolution Micro-Ohm Meter
The Extech High Resolution Micro-Ohm Meter is a precision instrument that measures resistive and inductive materials.
Features
- Auto or manual ranging
- 10A maximum test current
- PC interface
Starting At
$2,399.00
Stock
Check
Availability
Fondriest Exclusives
- Free ground shipping
- Expedited repair and warranty service
- Lifetime technical support
- More
The Extech High Resolution Micro-Ohm Meter is a precision meter that provides resolution down to 1μΩ using 4-wire kelvin clip test leads. The meter has 6 ranges with 3 sub-ranges in each current range. A built-in comparator for high/low resistance testing includes 20 sets of prestored values. The meter stores and recalls up to 3000 measurements.
- Resistance range: 60m, 600m, 6, 60, 600, 6k
- Resistance resolution: 1μ, 10μ, 100μ, 1m, 10m, 100m
- Current current: 10A, 1A, 100mA, 10mA, 1mA, 100μA
- Resistance accuracy: ±(0.25% + 25μΩ), ±(0.25% + 250μΩ), ±(0.25% + 2.5mΩ), ±(0.25% + 25mΩ), ±(0.25% + 250mΩ), ±(0.75% + 3Ω)
- Power: rechargeable li-polymer battery
- Dimensions: 10.1 x 6.1 x 2.2" (257 x 155 x 57mm)
- Weight: 2.6lb (1160g)
- (1) Meter
- (2) 4-wire cables with Kelvin clip connectors
- (1) USB cable and software
- (1) Rechargeable li-polymer battery
- (1) AC adapter/charger
- (1) Soft carrying case
Questions & Answers
Select Options
Products
0 Item Selected
Part #
Description
Price
Stock
Quantity
UM200
High resolution micro-ohm meter
$2,399.00
Check Availability
