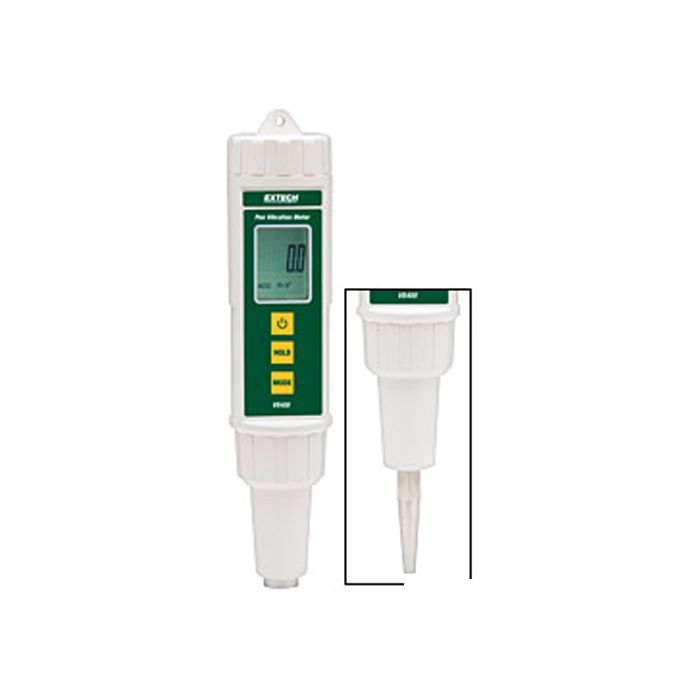

Extech Pen Vibration Meter
The Extech Pen Vibration Meter measures RMS acceleration and velocity.
Features
- Wide frequency range of 10Hz to 1kHz
- Data Hold freezes the reading in the display
- With metric and imperial units of measure
Your Price
$659.00
Stock
Check
Availability
Fondriest Exclusives
- Free ground shipping
- Expedited repair and warranty service
- Lifetime technical support
- More
The Extech Pen Vibration Meter measures acceleration (RMS): 656ft/s2; 20.39g; 200m/s2 and velocity (RMS): 7.87in/s; 2.00cm/s; 200mm/s. The meter has a wide frequency range of 10Hz to 1kHz. The data hold function freezes readings on the display for futher analysis. Applications include testing of motors, bearings, fans, pumps, rotating machinery, and plant maintenance.
- Acceleration ranges: 656ft/s2; 20.39g; 200m/s2
- Velocity ranges: 7.87in/s; 2.00cm/s; 200mm/s
- Resolution: 1ft/s2; 0.01g; 0.1m/s2and 0.02in/s; 0.01cm/s;0.1mm/s
- Basic accuracy: ±(5% + 2 digits)
- Meter dimensions: 6.9 x 1.6 x 1.3" (175 x 40 x 32mm)
- Sensing head dimensions: 0.4” dia x 1.9” (9mm dia x 30mm)
- Weight: 0.53lbs (240g)
- (1) Vibration meter
- (1) Test pin tip
- (1) Magnetic base
- (4) AAA batteries
- (1) Pouch case
Questions & Answers
Select Options
Products
0 Item Selected
Part #
Description
Price
Stock
Quantity
VB400
Pen vibration meter
$659.00
Check Availability
Notice: At least 1 product is not available to purchase online
