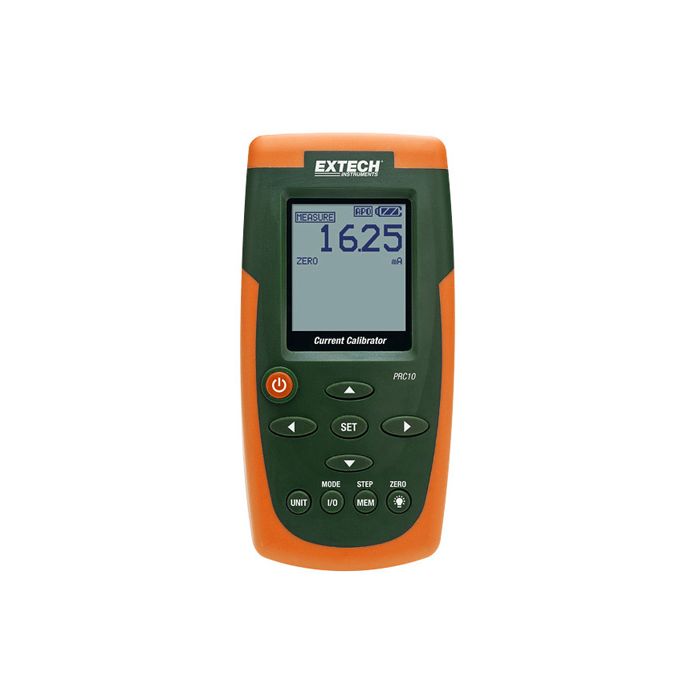

Extech PRC Current Calibrator and Meter
The PRC Current Calibrator and Meter is a precision source for calibrating process devices.
Features
- 0 to 24mA (-25 to 125%)
- Standard banana I/O ports
- Large battery bank for extended work cycle
Starting At
$459.00
Stock
Check
Availability
Fondriest Exclusives
- Free ground shipping
- Expedited repair and warranty service
- Lifetime technical support
- More
The Extech PRC meter contains up to five user adjustable calibration presets. The large batter bank and external power adapter provide lasting power to the instrument for extended work cycles. The palm-sized double molded housing and large dot-matrix backlit LCD make for ease-of-use of the meter. The model PRC10 features a 24V DC power source for 2-wire current loop, while the model PRC15 features a 0 to 20V DC calibration source.
Applications for the process devices calibration and simulation include transducers, transmitters, indicators, controllers, and recorders. Also handy for field tests and services, as well as bench research and development.
- Source range: Output 0 to 24mA current for loads up to 1000 ohms (-25% to 125%); Output 0 to 20V (PRC15 only)
- Measure range: 0 to 50mA current signal (-25 to 230%); 0 to 19.99V (PRC15 only)
- Power/measure range: Provides power (24VDC) to loop & measures current (PRC10 only)
- Input/output range and displays/ resolution: 0 to 19.99mA/0.01mA, 0 to 24.0mA/0.1mA, 0 to 1999mV/1mV, 0 to 20.00V/10mV
- Accuracy range: 0.01% ±1 digit
- Meter dimensions: 6.3" x 3.2" x 1.7" (159 x 80 x 44mm)
- Meter weight: 8.2oz (232g) - not including battery weight
- (1) Meter
- (1) Test leads
- (1) Alligator clips
- (1) 100V-240V AC universal adaptor with 4 plugs
- (6) 1.5 AA batteries
- (1) Hard carrying case
Questions & Answers
Select Options
Products
0 Item Selected
Part #
Description
Price
Stock
Quantity
PRC10
Current calibrator/meter
$459.00
Check Availability
Notice: At least 1 product is not available to purchase online
