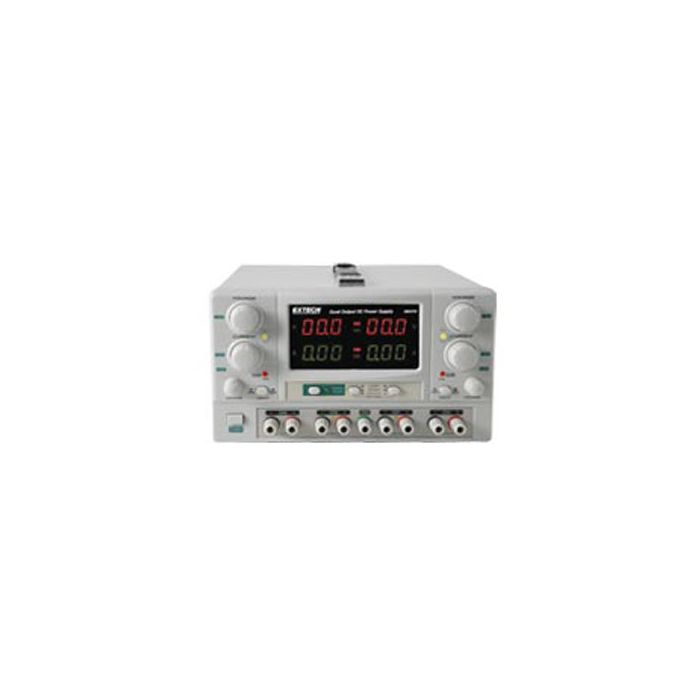

Extech Quad Output DC Power Supply

The Extech Quad Output DC Power Supply features two fully adjustable supplies combined with two auxiliary outputs.

Features

  • Outputs up to 60V in series mode or 10A in parallel mode
  • Overload and short circuit protection
  • Two auxiliary outputs with fixed current
Your Price $629.00
Stock Check Availability

Overview
The Extech Quad Output DC Power Supply features two 0 to 30V/0 to 5A outputs with selectable constant voltage and constant current modes. The outputs are up to 60V in series mode or 10A in parallel mode. The two auxiliary outputs have a fixed current of 3 to 6.5V/3A and 8 to 15V/1A.

  • Output voltage (4): 0 to 30V, 0 to 30V, 3 to 6.5V,8 to 15V
  • Output current (4): 0 to 5A, 0 to 5A, 3A (fixed), 1A (fixed)
  • Load voltage regulation: .1x10-4 + 3mV
  • Line voltage regulation: .1x10 + 3mV
  • Load current regulation: .2x10+ 3mA
  • Line current regulation: .2x10 + 3mA
  • Ripple and noise:< 0.5mVrms
  • Power: 100 to 240VAC,50/60Hz
  • Dimensions: 10.2 x 6.3 x 14.5" (260 x 160 x 370mm)
  • Weight: 26.5lbs (12kg)
  • (1) Power supply
  • (1) Power cord
  • (4) Pairs of test leads (banana plug to alligator clip)
