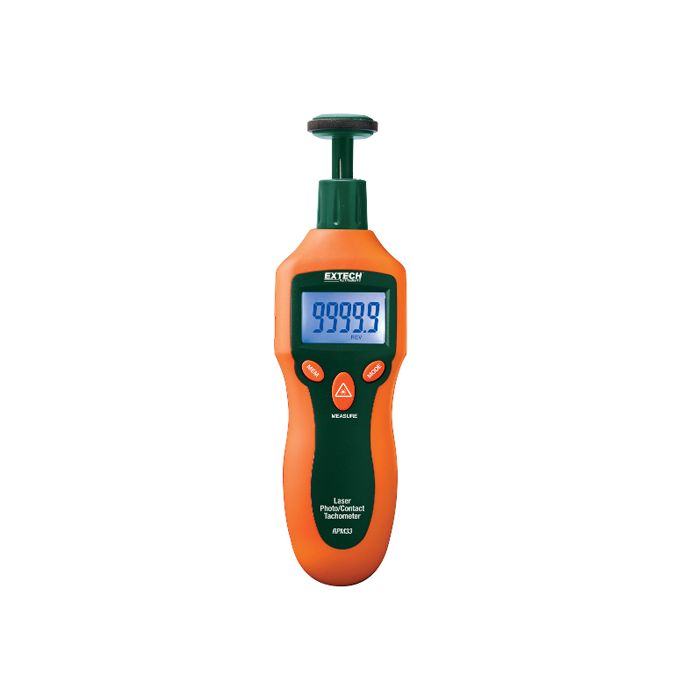

Extech RPM33 Combination Contact/Laser Photo Tachometer

The Extech RPM33 quickly measures RPM, surface speed, and length.

Features

  • Stores/recalls 10 data sets in memory with 4 parameters
  • Laser guided for greater distance non-contact measurements
  • Provides wide RPM
Starting At $259.00
Stock Check Availability

Quickly measure RPM, surface speed, and length with one tool. The Extech RPM33 provides wide RPM (photo and contact) and linear surface speed/length (contact) measurements. The instrument is laser guided for greater distance non-contact measurements up to 1.6 feet. Conduct contact RPM for flywheels, conveyors, pumps, and elevators, and non-contact RPM for motors, fans, and gears.

  • Photo mode range (rpm) : 2 to 99,999rpm
  • Photo mode accuracy: 0.05% rdg +1 digit
  • Contact mode range: 2 to 20,000rpm
  • Contact mode surface speed: 0 to 78,720 inches/min, 0 to 6560 ft/min, 0 to 2186 yards/min, 0 to 2000 m/min
  • Contact mode length: 3.9 to 39370 inches, 0.3 to 3280 feet, 0.1 to 1093 yards, 0.1 to 1000 meters
  • Contact mode frequency: 333 Hz
  • Contact mode accuracy: 0.05% rdg +1 digit
  • Sampling time: 0.5 Sec > 120rpm
  • Resolution: 0.1rpm (< 10,000 rpm); 1rpm (> 10,000 rpm)
  • Dimensions/weight: 6.2 x 2.3 x 1.6”(160 x 60 x 42 mm) / 5.3oz (151g)
  • (1) Tachometer
  • (1) Contact wheel
  • (1) 9V battery
  • (1) Reflective tape
  • (1) Soft case
Questions & Answers
No Questions
Did you find what you were looking for?

Select Options

  Products 0 Item Selected
Part #
Description
Price
Stock
Quantity
Extech RPM33 Combination Contact/Laser Photo Tachometer
RPM33
Combination contact/laser photo tachometer
$259.00
Check Availability
Extech RPM33 Combination Contact/Laser Photo Tachometer
RPM33-NIST
Combination contact/laser photo tachometer, NIST traceable
$356.50
Check Availability
