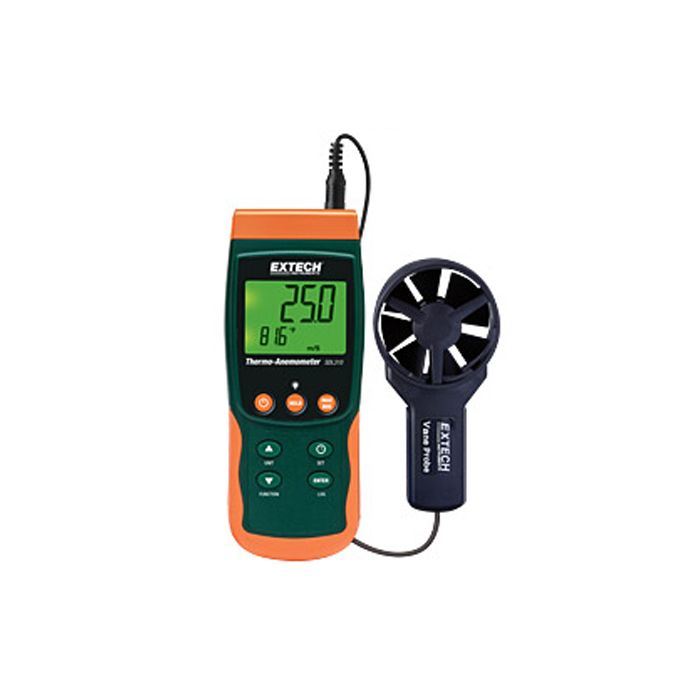

Extech SDL310 Vane Thermo-Anemometer/Datalogger

The Extech SDL310 Vane Thermo-Anemometer/Datalogger measures air temperature to 122°F (50°C) and air velocity to 4930ft/min.

Features

  • Type K/J Thermocouple input for high temperature measurements
  • Adjustable data sampling rate: 1 to 3600 seconds
  • Stores 99 readings manually and 20M readings via 2G SD card
Your Price $459.00
Stock Check Availability

Overview
The Extech Vane Thermo-Anemometer/Datalogger date/time stamps and stores readings on an SD card for easy transfer to a PC. The datalogger measures air temperature to 122°F (50°C) and air velocity to 4930ft/min. The type K/J thermocouple input allows for high temperature measurements. The user-programmable sampling rates are from 1 to 3600 seconds, and the datalogger stores 99 readings manually and 20M readings via the 2G SD card.

Additional Functions

  • Record/recall min and max readings
  • Data hold
  • Automatic power off with disable function



  • Air velocity m/s range: 0.4 to 25m/s
  • Air velocity m/s resolution: 0.01m/s
  • Air velocity m/s basic accuracy: ±2%rdg
  • Air velocity ft/min range: 80 to 4930ft/min
  • Air velocity ft/min resolution: 1ft/min
  • Air velocity ft/min basic accuracy: ±2%rdg
  • Air velocity MPH range: 0.9 to 55.9MPH
  • Air velocity MPH resolution: 0.1MPH
  • Air velocity MPH basic accuracy: ±2%rdg
  • Air velocity knots range: 0.8 to 48.6knots
  • Air velocity knots resolution: 0.1knots
  • Air velocity knots basic accuracy: ±2%rdg
  • Air velocity km/h range: 1.4 to 90.0km/h
  • Air velocity km/h resolution: 0.1km/h
  • Air velocity km/h basic accuracy: ±2%rdg
  • Temperature range: 32 to 122°F (0 to 50°C)
  • Temperature resolution: 0.1°
  • Temperatuer basic accuracy: ±1.5ºF (±0.8ºC)
  • Type K temperature range: -148 to 2372°F (-100 to 1300°C)
  • Type K temperature resolution: 0.1°
  • Type K temperature basic accuracy: ±(0.4% + 1.8°F/1°C)
  • Type J temperature range: -148 to 2192°F (-100 to 1200°C)
  • Type J temperature resolution: 0.1°
  • Type J temperature basic accuracy: ±(0.4% + 1.8°F/1°C)
  • Memory: 20,000K data records using 2G SD card
  • Dimensions: 7.2 x 2.9 x 1.9" (182 x 73 x 47.5mm)
  • Weight: 16.9oz (480g)
  • (1) Datalogger
  • (6) AA batteries
  • (1) SD card
  • (1) Vane sensor with 3.9ft (120cm) cable
  • (1) Hard carrying case
