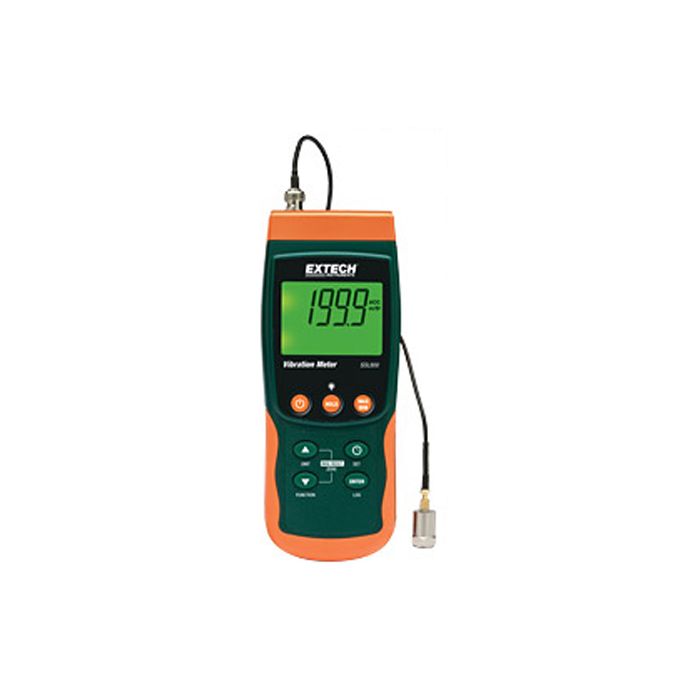

Extech SDL800 Vibration Meter/Datalogger
The Extech Vibration Meter/Datalogger features a vibration sensor with magnetic adapter on a 47.2 inch cable.
Features
- Wide frequency range of 10Hz to 1kHz
- Stores 99 readings manually and 20M readings via 2G SD card
- RMS, peak value or max hold measurement modes
Your Price
$1,249.00
Stock
Check
Availability
Fondriest Exclusives
- Free ground shipping
- Expedited repair and warranty service
- Lifetime technical support
- More
The Extech Vibration Meter/Datalogger tests vibration levels on motors, bearings,fans, pumps, rotating machinary, and more. The meter has a wide frequency range of 10Hz to 1kHz and a basic accuracy of ±(5% + 2 digits). It has an adjustable data sampling rate from 1 to 3600 seconds and RMS, peak value, and maximum hold measurement modes. The datalogger stores up to 99 readings manually and 20M readings via the 2G SD card. A built-in PC interface allows users to transfer data to a PC for further analys. Additional features include record/recall min, max readings, data hold, and automatic power off with disable function.
- Acceleration: 656ft/s2, 200m/s2, 20.39g
- Velocity: 7.87in/s, 200mm/s, 19.99cm/s
- Displacement: 0.078in, 2mm (peak-to-peak)
- Resolution: 1ft/s2, 0.1m/s2, 0.01g; 0.01in/s, 0.1mm/s, 0.01cm/s;
0.001in, 0.001mm - Basic accuracy: ±(5%+2 digits)
- Memory: 20,000K data records using 2G SD card
- Dimensions: 7.2 x 2.9 x 1.9" (182 x 73 x 47.5mm)
- Weight: 21.1oz (599g)
- (1) Datalogger
- (1) Remote sensor
- (1) Magnetic mount
- (6) AA batteries
- (1) SD card
- (1) Hard carrying case
Questions & Answers
Select Options
Products
0 Item Selected
Part #
Description
Price
Stock
Quantity
SDL800
Vibration meter/datalogger
$1,249.00
Check Availability
Notice: At least 1 product is not available to purchase online
