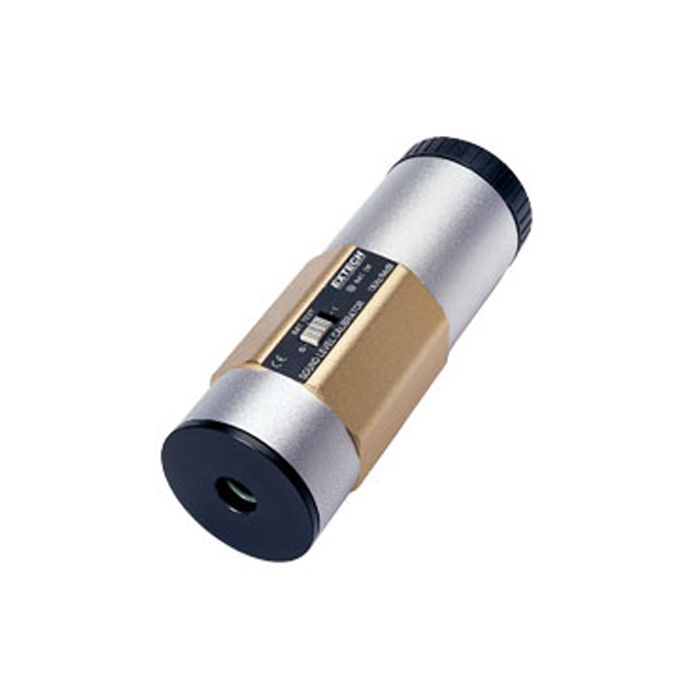

Extech Sound Calibrators

The Extech Sound Calibrator calibrates and verifies sound level meter operation.

Features

  • For use on Sound Level Meters with 0.5" or 1.0" microphones
  • Total Harmonic Distortion (THD)
  • Durable die-cast, aluminum housing
Starting At $384.00
Stock 1 AVAILABLE

Overview
The Extech Sound Calibrator calibrates and verifies sound level meter operation for meters with 0.5" or 1.0" microphones. Model 407744 features a 1kHz sine wave at 94kb that is generated with an accuracy of 5% (frequency) and ±0.8dB. Model 407766 features a level position to select 94dB or 114dB and an LED indicator light when power is on.

  • Frequency: 1000 Hz +/-5%
  • Sound pressure level: 94 dB (407744); 94dB/114dB (407766) +/-0.5dB (94dB), +/-1dB (114dB)
  • Distortion:< 2% total harmonic distortion (THD)
  • Operating temperature: 32 to 122F (0 to 50C)
  • Power supply: two heavy duty, alkaline 9V Battery
  • Power consumption: approx. 10mA DC
  • Dimensions: 2.2" diameter x 5.6" long (50 x 127mm)
  • Weight: 0.75 lbs. (340g)
  • (1) Sound Calibrator
  • (1) Screwdriver
  • (2) 9V batteries
  • (1) Case
Questions & Answers
No Questions
Did you find what you were looking for?

Select Options

  Products 0 Item Selected
Part #
Description
Price
Stock
Quantity
Extech Sound Calibrators
407744
94dB sound calibrator for 0.5" or 1" microphones
$384.00
Check Availability
Extech Sound Calibrators
407766
94/114dB sound calibrator for 0.5" or 1" microphones
$484.00
1 Available
Extech
407766-NIST
94/114dB sound calibrator for 0.5" or 1" microphones, NIST traceable
$679.00
Check Availability
