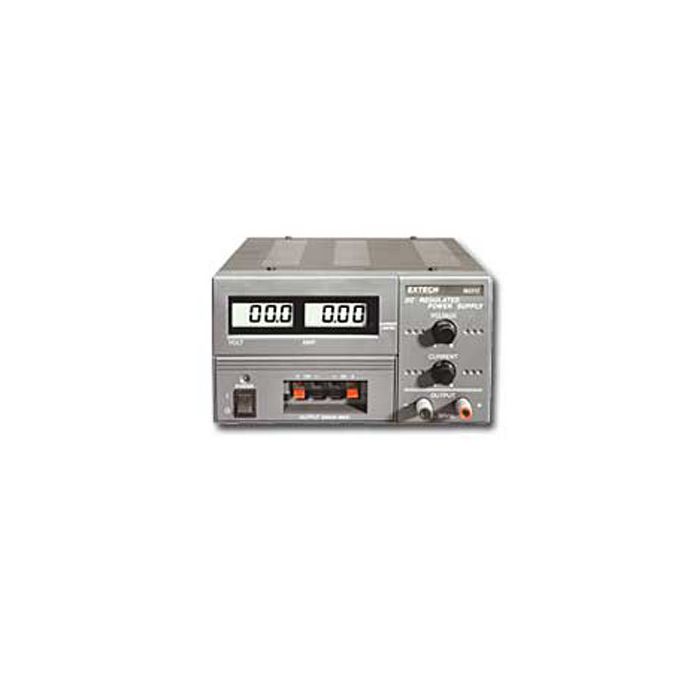

Extech Triple Output DC Power Supply

The Extech Triple Output DC Power Supply is adjustable to 30V/3A with fixed 5V and 12V outputs.

Features

  • Overload and short circuit protection
  • Constant voltage or current
  • Current limiting front panel LED indicator
Your Price $289.00
Stock Check Availability

Overview
The Extech Triple Output DC Power Supply features easy snap terminals for 5V and 12V outputs. The overload and short circuit protection keep users safe when using the power supply. It includes a 0-30V adjustable voltage output, 0-3A adjustable current output, and independent 5V and 12V outputs provided for TTL or CMOS projects. Model 382203 is an analog display, and model 382213 is a digital LCD display.

  • Voltage output, DC: 0 to 30 Volts
  • Current output, DC: 0 to 3 Amps
  • Ripple and noise:< 5mV
  • Line regulation:< 0.05%+10mV
  • Load regulation:< 0.05%+10mV
  • Fixed output voltage: 5V/0.5A (cont.), 1A(max); 12V/0.5A (cont.), 1A(max)
  • Display: 382203 - analog or 382213 - digital (V&A),3 digit 0.1 res. LCD
  • Power: 110/220VAC 50/60Hz
  • Dimensions: 6 x 5.6 x 9.5" (152 x 142 x 242)
  • Weight: 11lbs. (5kg)
  • (1) Power Supply
  • (1) Power cord
