Global Water WQ101 Temperature Sensor

Global Water's WQ101 temperature sensor is a rugged reliable temperature measuring device for air or water applications.

Features

  • Sensor output is 4-20mA with a two wire configuration
  • Each sensor is mounted on marine-grade cable with up to 500 ft. lengths
  • Stainless steel or PVC housing
Starting At $650.75
Stock 17 AVAILABLE

Overview
The Global Water WQ101 is a rugged, reliable temperature measuring device for air or water applications. The probe is mounted on up to 500 ft. of marine grade cable and has a two-wire configuration for minimum current draw. The unit's electronics are completely encapsulated in marine-grade epoxy within a stainless steel housing. The online version comes with ¾ x 6 inch PVC pipe nipple, threaded both ends with cap (¾" NPT PVC housing).

Output 4-20 mA
Range

-58 to +122° F (-50 to +50°C)

Accuracy ±0.2°F or ±0.1°C
Maximum Pressure Standard: 200 psi
Online: 50 psi
Operating Voltage 10-36 VDC

Current Draw

Same as sensor output

Warm Up Time

5 seconds minimum

Operating Temperature 58 to +212° F (-50 to +100°C)
Size of Probe Standard: 3/4" Diameter x 4-1/2" L (1.9cm dia. x 11.4cm long)
Online: 1-3/4" Diameter x 8" L (4.3cm dia. x 20.3cm long)
Weight Standard: 8 ounces (227g)
Online: 9.4 ounces (272g)
Questions & Answers
How should I store my sensor?
The temperature sensor may be stored without any special provisions. Place the sensor inside a bag to keep the sensor clean and store on a shelf or hang it on a wall.
What is the warm up time for this sensor?
The WQ101 Temperature Sensor has a minimum warm up time of 5 seconds.
How accurate is this sensor?
The WQ101 Temperature sensor is has an accuracy of +/-0.2 F or +/- 0.1 C
Did you find what you were looking for?

Select Options

  Products 0 Item Selected
Part #
Description
Price
Stock
Quantity

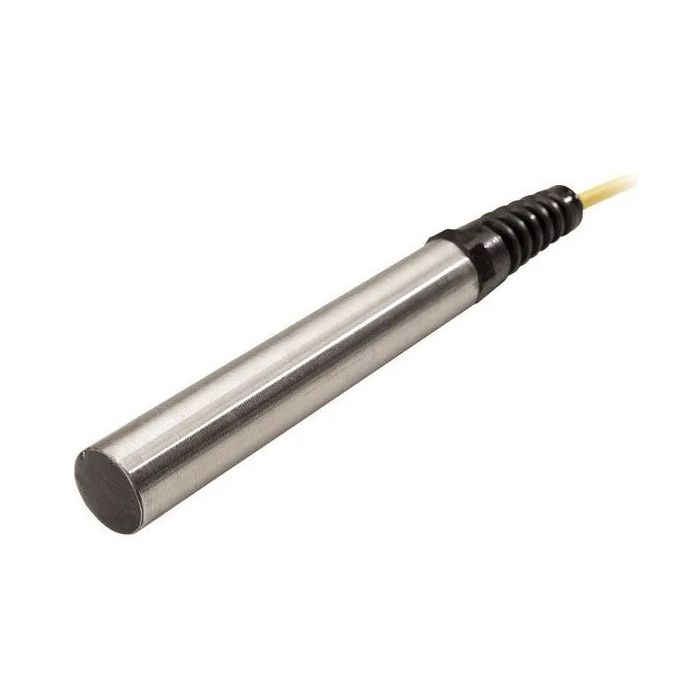

Side view of Global Water WQ101 Temperature Sensor with stainless steel housing.
400760-025
WQ101 temperature sensor, 25 ft. cable
$650.75
Check Availability
Global Water WQ101 Temperature Sensor
400760-050
WQ101 temperature sensor, 50 ft. cable
$674.50
17 Available
Global Water WQ101 Temperature Sensor
400760-075
WQ101 temperature sensor, 75 ft. cable
$737.20
Check Availability
Global Water WQ101 Temperature Sensor
400760-100
WQ101 temperature sensor, 100 ft. cable
$1,007.95
Check Availability
Global Water WQ101 Temperature Sensor
400760-125
WQ101 temperature sensor, 125 ft. cable
$1,079.20
Check Availability
Global Water WQ101 Temperature Sensor
400760-150
WQ101 temperature sensor, 150 ft. cable
$1,112.45
Check Availability
Global Water WQ101 Temperature Sensor
400760-200
WQ101 temperature sensor, 200 ft. cable
$1,163.75
Check Availability
Global Water WQ101 Temperature Sensor
400760-300
WQ101 temperature sensor, 300 ft. cable
$1,420.25
Check Availability
Global Water WQ101 Temperature Sensor
400760-500
WQ101 temperature sensor, 500 ft. cable
$1,718.55
Check Availability
Global Water WQ101 Temperature Sensor
400761-025
WQ101 online temperature sensor, 25 ft. cable
$654.55
Check Availability
Global Water WQ101 Temperature Sensor
400761-050
WQ101 online temperature sensor, 50 ft. cable
$711.55
Check Availability
Global Water WQ101 Temperature Sensor
400761-075
WQ101 online temperature sensor, 75 ft. cable
$766.65
Check Availability
Global Water WQ101 Temperature Sensor
400761-100
WQ101 online temperature sensor, 100 ft. cable
$999.40
Check Availability
Global Water WQ101 Temperature Sensor
400761-125
WQ101 online temperature sensor, 125 ft. cable
$1,065.90
Check Availability
Global Water WQ101 Temperature Sensor
400761-150
WQ101 online temperature sensor, 150 ft. cable
$1,132.40
Check Availability
Global Water WQ101 Temperature Sensor
400761-200
WQ101 online temperature sensor, 200 ft. cable
$1,265.40
Check Availability
Global Water WQ101 Temperature Sensor
400761-300
WQ101 online temperature sensor, 300 ft. cable
$1,531.40
Check Availability
Global Water WQ101 Temperature Sensor
400761-500
WQ101 online temperature sensor, 500 ft. cable
$2,063.40
Check Availability
