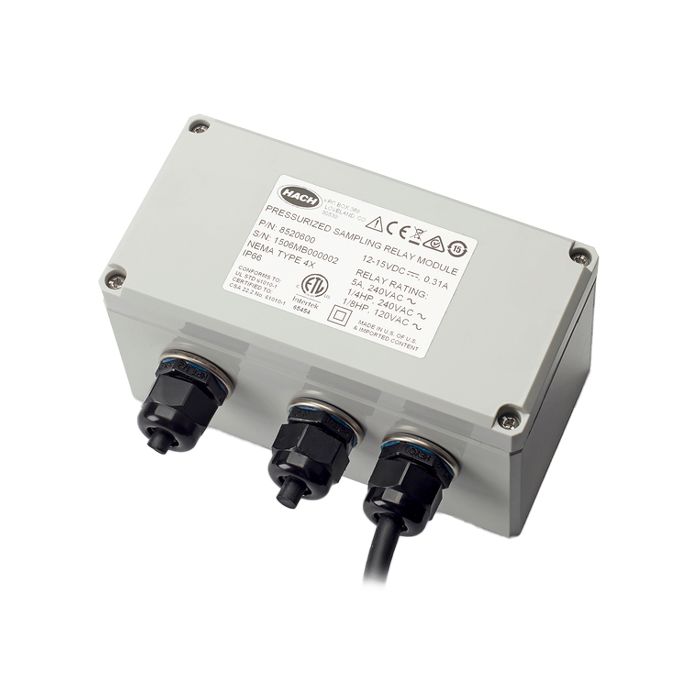

Hach AS950 Pressurized Sampling Relay Module

The pressurized sampling relay module has a high-voltage relay for automatic sample collection from a pressurized sample line.

Features

  • Low-voltage connections for optional flow pacing and sampler program control
  • Compatible with AS950 portable, refrigerated and all-weather refrigerated samplers
  • IP66 / NEMA 4X enclosure rating for outdoor use
Your Price $1,464.00
Stock Drop Ships From Manufacturer

The pressurized sampling relay module has a high-voltage relay for automatic sample collection from a pressurized sample line. The module also has low-voltage connections for optional flow pacing and sampler program control. The module can be used with a portable, refrigerated or an All-Weather Refrigerated Sampler (AWRS) that has the AS950 controller.

Cable Length Auxiliary cable, 7-pin
Certifications CE, UL/CSA standards (cETLus)
Dimensions 160 x 80 x 86 mm (6.30 x 3.15 x 3.39 in.)
Enclosure Rating IP66 / NEMA 4X
Operating Conditions -30° C (-22° F) - 50°C (122°F)
Power Input 12 - 15 V DC, 0.31 A (from the AS950 controller)
Relay Functions 5 A maximum resistive load at 240 VAC, 1/8 HP at 120 VAC, 1/4 HP at 240 VAC
Weight 0.59 kg (1.3 lbs)
