Hach Intellical CDC401 Field 4-Poles Graphite Conductivity Cells

The Hach Intellical CDC401 Field 4-Poles Graphite Conductivity Cell is a digital, graphite, 4-pole conductivity cell with a temperature sensor.

Features

  • Available with 5, 10, or 15m cable
  • Stainless steel body
  • Reinforced, steel-sheathed cables
Starting At $1,196.00
Stock Drop Ships From Manufacturer

Overview

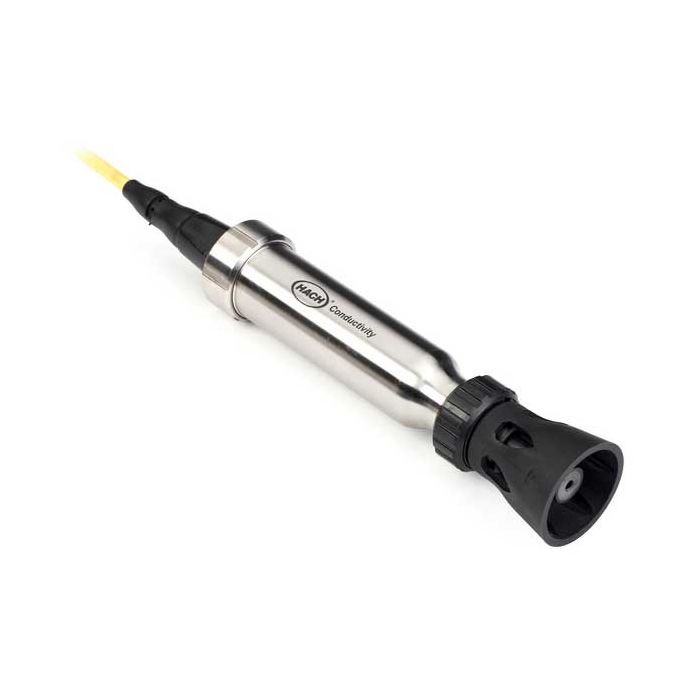

The Hach Intellical CDC401 is a digital, graphite, 4-pole conductivity cell with a temperature sensor. This Rugged CDC401 version is built with a stainless steel body, ensuring sufficient weight to the probe for easy outside handling, the sensing part is protected by a shroud, and the connection is ensured by strong and visible yellow cable onto which you can clip depth markers (optional accessories), making the CDC401 rugged models specially designed for field use.

Applications
The Hach CDC401 is available with a 5, 10, 15, or 30-meter cable. The CDC401 Rugged is ideal for measuring electrical conductivity, salinity, resistivity, or total dissolved solids (TDS) in all types of external environments such as rivers, surface and ground waters, ponds, lakes, sea, wastewater plants, source waters, drinking water reservoirs for water quality, environmental and treatment process purposes.

Accuracy:

Cond: ±0.5% of range

Salinity: ±0.1, ±1 digit

TDS: ±0.5% ±1 digit

Cable Length(s):

5m (16.40 ft), 10m and 15m

Electrode Type:

Conductivity Cell;
4 Poles - Graphite

Kit?:

No

Length:

223 mm (8.73 in.)

Method Type:

Field: 4 Poles - Graphite

Parameter:

Conductivity

Probe Type:

Rugged

Product Kit:

Model: CDC401

Accessories Included: None

Range:

Conductivity: 0.0 µS/cm - 200 mS/cm

TDS: 0.00 mg/L - 50.0 g/L as NaCl

Salinity: 0 - 42 ppt or ‰

Resistivity: 2.5 Ωcm - 49 MΩcm

Resolution:

0.01/0.1 (5 digits max.)

Sample depth:

45 mm (1.77 in.)

Sensor material:

Noryl / Stainless Steel

Sensor Type:

4-poles conductivity probe Graphite, k = 0.40 cm-1

Temperature Accuracy:

±0.3 °C (±0.54 °F)

Temperature Range:

-10 - 110 °C (14 - 230 °F)

Temperature Resolution:

0.1 °C (0.18 °F)

Test requirements:

Parameter Needed: Conductivity

Minimum Sample Depth (mm): 45

Thermistor:

ATC

Warranty:

12 months

Water Resistance:

IP67, waterproof for 24 hours at a depth of 30 meters

Weight:

0.8 kg

What's included?:

IntelliCAL CDC401 Rugged Conductivity Cell, 5 m cable, protective shroud kit, Test certificate, and Basic User Manual.

IntelliCAL CDC401 Rugged Conductivity Cell, 5 m cable, protective shroud kit, Test certificate, and Basic User Manual.

Questions & Answers
No Questions
Did you find what you were looking for?

Select Options

  Products 0 Item Selected
Part #
Description
Price
Stock
Quantity
Hach Intellical CDC401 Field 4-Poles Graphite Conductivity Cells
CDC40105
Intellical CDC401 Field 4-Poles Graphite Conductivity Cell, 5m Cable
$1,196.00
Drop Ships From Manufacturer
Hach Intellical CDC401 Field 4-Poles Graphite Conductivity Cells
CDC40110
Intellical CDC401 Field 4-Poles Graphite Conductivity Cell, 10m Cable
$1,255.00
Drop Ships From Manufacturer
Hach Intellical CDC401 Field 4-Poles Graphite Conductivity Cells
CDC40115
Intellical CDC401 Field 4-Poles Graphite Conductivity Cell, 15m Cable
$1,322.00
Drop Ships From Manufacturer
