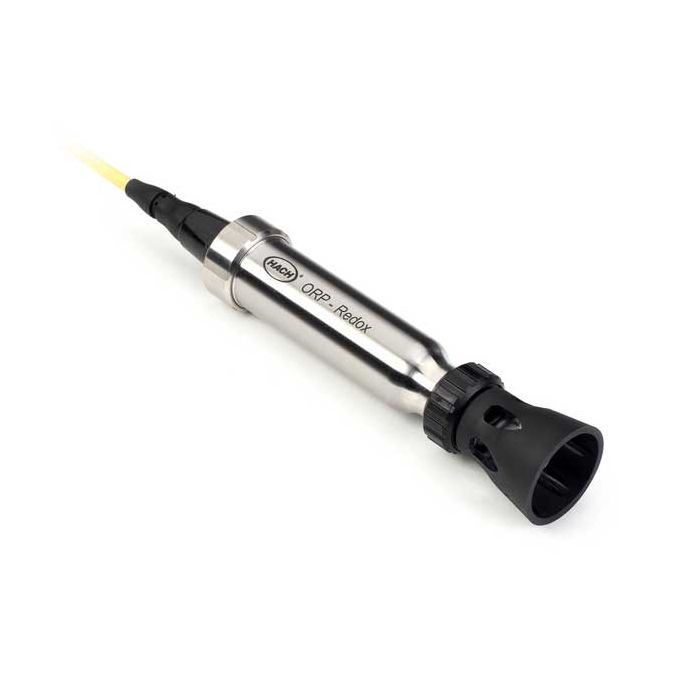

Hach Intellical MTC101 Field Gel Filled ORP Electrodes
Intellical MTC101 is a digital combination oxidation reduction potential (ORP/RedOx) electrode with built-in temperature sensor.
Features
- Stainless steel body, polymer sensor shroud, and reinforced, steel-sheathed cables
- User alerted when re-calibration is needed
- Available with 5, 10 or 15m cable
Starting At
$1,021.00
Stock
Drop Ships From
Manufacturer
Fondriest Exclusives
- Free ground shipping
- Expedited repair and warranty service
- Lifetime technical support
- More
Intellical MTC101 is a digital combination oxidation reduction potential (ORP/RedOx) electrode with built-in temperature sensor. MTC101 has low maintenance needs thanks to a non-refillable gel-filled single open reference junction. This Rugged MTC101 version is built with a stainless steel body ensuring sufficient weight to the probe for an easy outside handling, the Metal Platinum sensing part is protected by a shroud, and the connection is ensured by strong and visible yellow coloured cable onto which you can clip depth markers (optional accessories), making the MTC101 rugged models specially designed for field use.
MTC101 Rugged is available with a 5, 10, 15, or 30 meters cable. The MTC101 Rugged is ideal for measuring ORP/RedOx absolute mV values in all types of external environment such as river, surface and ground waters, ponds, lakes, sea, wastewater plant, source water, drinking water reservoir for water quality, environmental and treatment process purposes.
|
Accuracy: |
±0.02 mV or 0.05%, whichever is greater |
|
Cable Length: |
5 (16.40 ft), 10, and 15m |
|
Electrode Type: |
Non-Refillable Gel Reference Element |
|
Junction |
:Open Junction |
|
Kit?: |
No |
|
Length: |
223 mm (8.73 in.) |
|
Method Type: |
Field: Non-Refillable Gel Reference Element |
|
Parameter: |
ORP |
|
Probe Type: |
Rugged |
|
Product Kit: |
Model: MTC101 |
|
Range: |
±1200 mV |
|
Reference Type: |
Ag/AgCl |
|
Resolution: |
±0.1 mV |
|
Sample depth: |
20 mm (0.79 in.) |
|
Sensor material: |
Epoxy / Stainless Steel |
|
Sensor Type: |
Platinum disc |
|
Special Features: |
Flat disc sensor for easy cleaning. |
|
Temperature Accuracy: |
±0.3 °C (±0.54 °F) |
|
Temperature Range: |
0 - 80 °C (32 - 176 °F) |
|
Temperature Resolution: |
0.1 °C (0.18 °F) |
|
Test requirements: |
Parameter Needed: ORP Minimum Sample Depth (mm): 20 |
|
Thermistor: |
ATC |
|
Warranty: |
6 months |
|
Water Resistance: |
IP67, waterproof for 24 hours at a depth of 30 meters |
|
Weight: |
0.8 kg |
|
What's included?: |
IntelliCAL MTC101 Rugged ORP/RedOx electrode with storage cap, 5m cable, Test certificate, and Basic User Manual. |
IntelliCAL MTC101 Rugged ORP/RedOx electrode with storage cap, 5m cable, Test certificate, and Basic User Manual.
Questions & Answers
Select Options
Products
0 Item Selected
Part #
Description
Price
Stock
Quantity
MTC10105
Intellical MTC101 Field Low Maintenance Gel Filled ORP/RedOx Electrode, 5m Cable
$1,021.00
Drop Ships From
Manufacturer
Notice: At least 1 product is not available to purchase online
