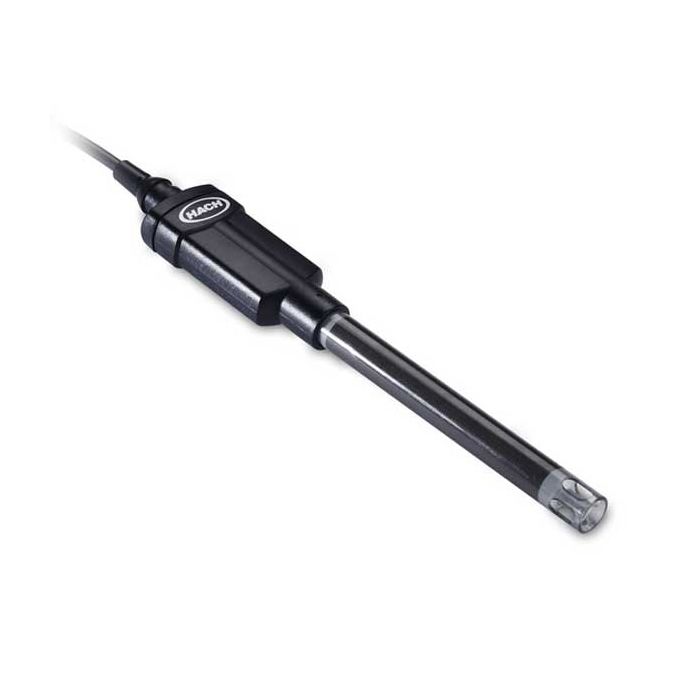

Hach Intellical MTC101 Laboratory Gel Filled ORP Electrodes
The Hach Intellical MTC101 is a digital, combination oxidation reduction potential (ORP/Redox) probe with a non-refillable, gel-electrolyte reference and built-in temperature sensor.
Features
- Available with 1m or 3m cable
- Provides fast, stable response in a variety of applications
- User alerted when re-calibration is needed
Starting At
$583.00
Stock
Drop Ships From
Manufacturer
Fondriest Exclusives
- Free ground shipping
- Expedited repair and warranty service
- Lifetime technical support
- More
Overview
The Hach Intellical MTC101 is a digital, combination oxidation reduction potential (ORP/Redox) probe with a non-refillable, gel-electrolyte reference and built-in temperature sensor. The Hach MTC101 has low maintenance needs thanks to a non-refillable gel-filled single open reference junction.
Applications
The laboratory version of this metallic electrode is shockproof with its epoxy plastic body protecting down to the platinum sensing element. The Electrode is available with a 3 or 1m cable. The MTC101 electrode is ideal for measuring ORP/RedOx absolute mV values in wastewater, drinking water and aqueous media applications. The MTC101 is not suitable for use with organic solvents.
|
Accuracy: |
±0.02 mV or 0.05%, whichever is greater |
|
Cable Length: |
1 m (3.28 ft) |
|
Electrode Type: |
Non-Refillable Gel Reference Element |
|
Junction: |
Open Junction |
|
Kit?: |
No |
|
Length: |
175 mm (6.89 in.) |
|
Method Type: |
Laboratory: Non-Refillable Gel Reference Element |
|
Parameter: |
ORP |
|
Probe Type: |
Standard |
|
Product Kit: |
Model: MTC101 Accessories Included: None |
|
Range: |
±1200 mV |
|
Reference Type: |
Ag/AgCl |
|
Resolution: |
±0.1 mV |
|
Sample depth: |
20 mm (0.79 in.) |
|
Sensor material: |
Epoxy |
|
Sensor Type: |
Platinum disc |
|
Special Features: |
Flat disc sensor for easy cleaning. |
|
Temperature Accuracy: |
±0.3 °C (±0.54 °F) |
|
Temperature Range: |
0 - 80 °C (32 - 176 °F) |
|
Temperature Resolution: |
0.1 °C (0.18 °F) |
|
Test requirements: |
Parameter Needed: ORP Minimum Sample Depth (mm): 20 |
|
Thermistor: |
ATC |
|
Warranty: |
6 months |
|
Weight: |
0.1 kg |
|
What's included?: |
IntelliCAL MTC101 Laboratory ORP/RedOx electrode with storage soaker bottle, 1 m cable, Test certificate, and Basic User Manual. |
IntelliCAL MTC101 Laboratory ORP/RedOx electrode with storage soaker bottle, 1m cable, Test certificate, and Basic User Manual.
Questions & Answers
Select Options
Products
0 Item Selected
Part #
Description
Price
Stock
Quantity
MTC10101
Intellical MTC101 Laboratory Low Maintenance Gel Filled ORP/RedOx Electrode, 1m Cable
$583.00
Drop Ships From
Manufacturer
Notice: At least 1 product is not available to purchase online
