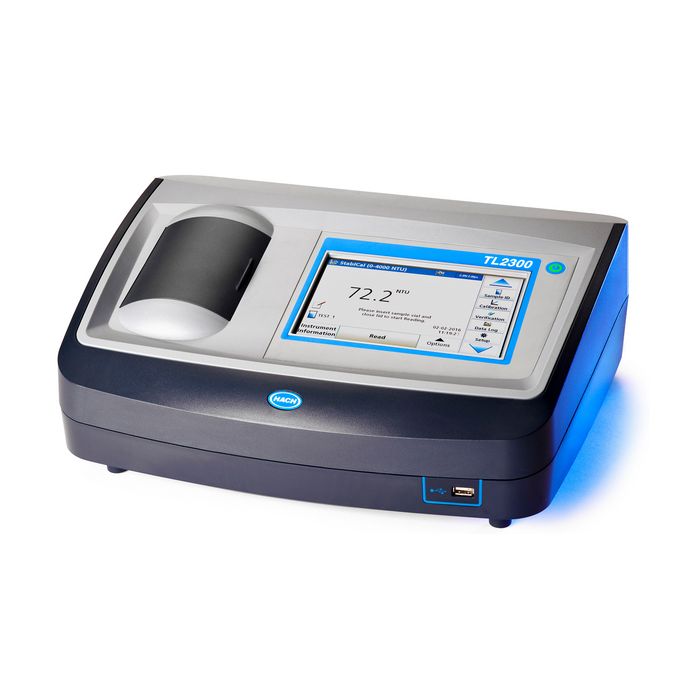

Hach TL23 Series Benchtop Turbidimeters
The Hach TL23 Series laboratory turbidimeters blend the trusted technology of the 2100N/AN and improved features to simplify testing in the most demanding industrial and wastewater applications.
Features
- Large full color display with guided procedures for calibration and verification
- Instrument detects sample stability prior to taking a reading
- USB port for data export, sample identification for traceability and self-diagnosis for quality assurance
Starting At
$4,108.00
Stock
Drop Ships From
Manufacturer
Fondriest Exclusives
- Free ground shipping
- Expedited repair and warranty service
- Lifetime technical support
- More
Overview
The Hach TL23 Series laboratory turbidimeters blend trusted technology of the 2100N/AN and improved features to simplify testing in the most demanding industrial and wastewater applications. With their ratio technology, the TL23 lab turbidimeters are ideal for industrial and other samples with a wide range of turbidity. The TL23’s ratio technology helps to overcome the interference from large particles and color when measuring turbidity.
Four Types of Models
- TL2300 (EPA, up to 4,000 NTU)
- TL2310 (ISO, up to 1,000 NTU)
- TL2350 (EPA, up to 10,000 NTU)
- TL2360 (ISO, up to 10,000 NTU)
TL2300 and TL2350 Turbidimeters
The optical system is comprised of a tungsten-filament lamp, lenses and apertures to focus the light, a 90° detector, a forward-scatter light detector, a backscatter detector (TL2350 only) and a transmitted-light detector. The instrument permits turbidity measurements at less than 40 NTU to be performed using only the 90° scattered-light detector or from 4000 NTU (TL2300) to 10000 NTU (TL2350) using the complete set of detectors (Ratio Measurement). With the Ratio Measurement on, the instrument’s microprocessor uses a mathematical calculation to ratio signals from each detector.
TL2310 Turbidimeter
The optical system includes an 860 ±30 nm light emitting diode (LED) assembly and a 90° detector to monitor scattered light. The instrument measures turbidity up to 1000 FNU or NTU using the single 90° detector. The instrument does not utilize ratio measurements.
TL2360 Turbidimeter
The optical system includes an 860 ±30 nm light emitting diode (LED) assembly and a 90° detector to monitor scattered light, a forward-scatter light detector, a transmitted-light detector and a back-scatter light detector. The instrument measures turbidity up to 1000 units in FNU measurement mode using the ratio detectors. Attenuation measurements of up to 10000 FAU units can be made using a single transmitted detector. The instrument measures turbidity at less than 1000 NTU using only the 90° scattered-light detector or up to 10000 NTU using the complete set of detectors (ratio mode).
- TL23 Series Turbidimeter
- Silicone oil
- Oiling cloth
- USEPA filter assembly
- 1-inch sample cells (30 mL) with caps (6x)
- Gelex secondary turbidity standardization kit
- StablCal calibration kit
- Power supply
- Power cord
- Dust cover
Questions & Answers
Select Options
Products
0 Item Selected
Part #
Description
Price
Stock
Quantity
LPV444.99.00210
TL2300 tungsten lamp turbidimeter, EPA Method 180.1, 0 to 4000 NTU range
$4,108.00
Drop Ships From
Manufacturer
Accessories
0 Item Selected
Notice: At least 1 product is not available to purchase online
