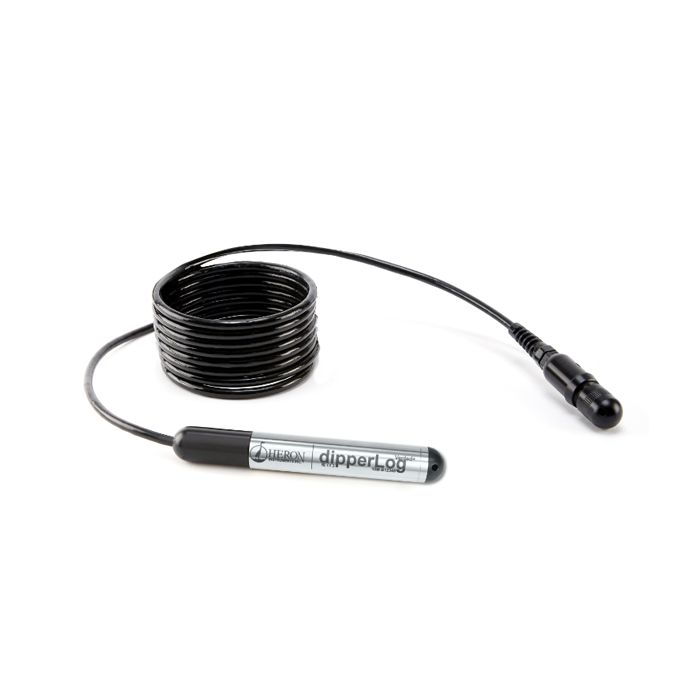

Heron dipperLog VENTED+ Water Level Logger
The Heron dipperLog VENTED is a low-cost water level logger for continuously monitoring water levels and temperature in wells, boreholes and open bodies of water.
Features
- Automatic barometric pressure compensation using vented cable
- Easy-to-use software for deployment, data upload & data management
- Vented cable is removable for easy field replacement
Starting At
$691.00
Stock
Drop Ships From
Manufacturer
Fondriest Exclusives
- Free ground shipping
- Expedited repair and warranty service
- Lifetime technical support
- More
Overview
The Heron dipperLog VENTED+ Water Level Logger is a reliable, cost effective solution for measuring groundwater levels and temperature in wells, boreholes and open bodies of water. The dipperLog VENTED+, incorporates a gauged transducer that measures pressure exempt from barometric influences which is ideal to use in both long and short term monitoring.
Design
The vented data logger is now removable from the vent cable allowing for easy field replacement and other deployment applications. The new Vent Cap Adaptor, especially designed for shallow applications, allows for a true collection of water level measurements without performing barometric compensation. By utilizing the Vent Cap Adaptor, a dipperLog VENTED+ can be deployed in wetlands or overflow ditches without a vent cable. This cap is specifically designed to allow the barometric pressure to be measured accurately when the cap is exposed while sealing the logger from water intrusion when the cap becomes submerged.
Questions & Answers
Select Options
Products
0 Item Selected
Part #
Description
Price
Stock
Quantity
54VEN-B
dipperLog VENTED+ water level & temperature logger with well head & mounting kit, 30 ft/10m range (requires vented cable)
$691.00
Drop Ships From
Manufacturer
Accessories
0 Item Selected
Notice: At least 1 product is not available to purchase online
