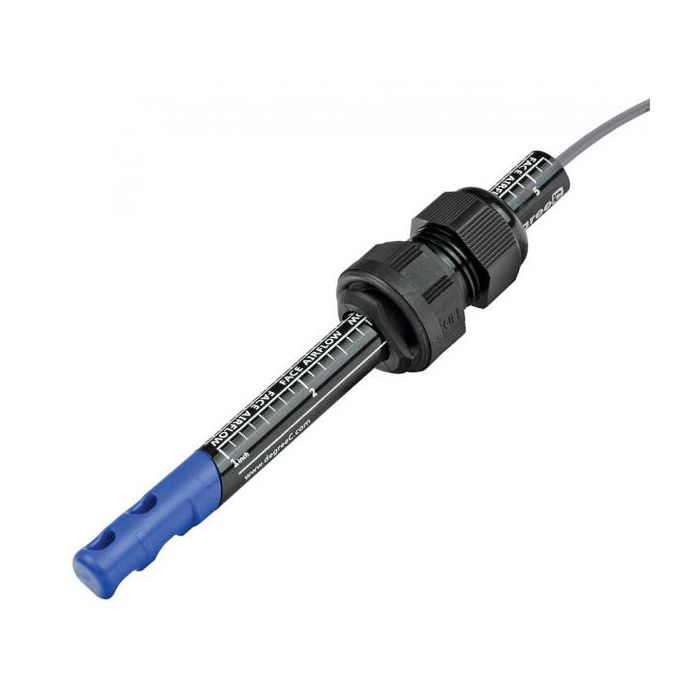

HOBO Air Velocity and Temperature Sensor
The HOBO F300 series sensors are versatile, rugged, high-performance air velocity and air temperature probes built to handle a wide range of product and process-control air flow applications.
Starting At
$493.00
Stock
Check
Availability
Fondriest Exclusives
- Expedited repair and warranty service
- Lifetime technical support
- More
Overview
The HOBO F300 series are versatile, rugged, high-performance air velocity and air temperature sensors. Designed with conformal coated electronics and sealed enclosures, F300 sensors area suitable for demanding applications, including those in corrosive or alkaline environments. With a robust, splash-proof design and UV-tolerant construction, F300s are built to handle a wide range of product and process-control air flow applications.
Requirements (Logger Specific)
- HOBO MX1100 series: 0-5 Volt DC input cable (SD-VOLT-05) and external power provided by an AC adapter (AC-SENS-1)
- HOBO U12, UX120-006M, or ZW series: 0-5 Volt DC input cable (CABLE-ADAP5) and external power provided by an AC adapter (AC-SENS-1)
- HOBO RX3000: an analog input module (RXMOD-A1)HOBO U30an analog input module (VIA)
- HOBO H22: an analog input module (S-FS-CVIA)
- Operating temperature range: 0°C to 60°C (32°F to 140°F)
- Velocity range: 0.15 to 1.0 m/s (30 to 200 fpm)
0.5 to 10 m/s (100 to 2,000 fpm)
1.0 to 20 m/s (200 to 4,000 fpm) - Response time: 400ms
- Storage temperature: -40°C to 105°C (-40°F - 220°F)
- Relative humidity (non-condensing): 5-95%
- Supply power requirements: 4.5-15 VDC, 35mA nominal
- Velocity Output: 0-5V
- Temperature output: 0-5V
- Housing Construction: Polycarbonate (PC), UL94-V0 (head) UL94-HB (housing)
- Plenum rated cable: 22 AWG
- Environmental Protection: IP65 electronics, including conformal coated sensing element
- Accuracy: 0.15 to 1.0 m/s (30 to 200 fpm): ± (1% of reading + 0.05 m/s [10 fpm])
0.5 to 10 m/s (100 to 2,000 fpm): (4% of reading + 0.10 m/s [20 fpm])
1.0 to 20 m/s (200 to 4,000 fpm): ± (5% of reading + 0.15 m/s [30 fpm]) - Sensor Length: 152mm [6.0”]
- Max insertion depth: 110 mm [4.3”]
Questions & Answers
Select Options
Products
0 Item Selected
Part #
Description
Price
Stock
Quantity
T-DCI-F300-1A3
Air Velocity and Temperature Sensor (30 to 200 fpm)
$493.00
