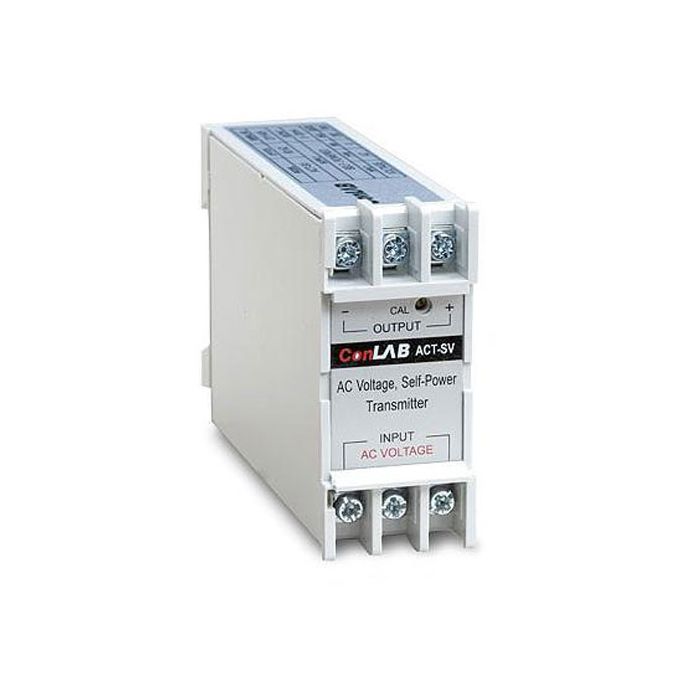

HOBO ConLab Volt AC Transmitter Sensor

The HOBO ConLab AC Voltage transmitter is a self-powered transformer for monitoring sine wave and single-phase AC voltage. Requires an input cable (CABLE-4-20mA).

Features

  • Available in 0 to 150 Volts AC and 0 to 300 Volts AC
Starting At $185.00
Stock Check Availability

Overview
The HOBO ConLab AC Voltage transmitter is a self-powered transformer for monitoring sine wave and single-phase AC voltage. Available in two ranges: 0 to 150 Volts AC, and 0 to 300 Volts AC.

Cable Requirements (Logger Specific)
HOBO MX1100 series: 4-20mA input cable (SD-MA-420)
HOBO U12, UX120-006M, or ZW series: 4-20mA input cable (CABLE-4-20mA)

  • Ranges:  0-150 and 0-300 volts RMS
  • Sensor accuracy: < ±0.1% of span (20% to 120% of range) ±0.25% of span (10% of range)
  • Over range: +20% of span
  • Over load: +40% of span
  • Frequency: 60 Hz AC
  • Supply: Self-powered
  • Output: 0–20 mA
  • Response time to 90%: <240 msec
  • Operating conditions: -20° to 70°C (-4° to 158°F); 5-95% RH, non-condensing
  • Housing: Plastic polycarbonate

Notes: Because these sensors tie directly into the line, they should be used only by qualified personnel.

Requirements
For U12 & H8 Loggers: Input Cable (Part # CABLE-4-20mA)
For HOBO Energy Logger: FlexSmart Analog Module (Part # S-FS-CVIA)

Questions & Answers
No Questions
Did you find what you were looking for?

Select Options

  Products 0 Item Selected
Part #
Description
Price
Stock
Quantity
HOBO ConLab Volt AC Transmitter Sensor
T-CON-ACT-150
ConLab Volt AC Transmitter Sensor (0-150 V)
$185.00
Check Availability
HOBO ConLab Volt AC Transmitter Sensor
T-CON-ACT-300
ConLab Volt AC Transmitter Sensor (0-300 V)
$185.00
Check Availability
