HOBO U12 Stainless Temperature Loggers

The HOBO U12 Stainless Temperature Data Logger is ideal for food, pharmaceutical, autoclave, and other applications where high-accuracy temperature data is critical.

Features

  • Food-grade 316 Series stainless steel
  • High-accuracy, extended temperature range
  • Suitable for high pressure applications to 2200psi
Starting At $359.00
Stock Check Availability

Overview
The HOBO U12 Stainless Temperature Data Logger is ideal for food, pharmaceutical, autoclave, and other applications where high-accuracy temperature data is critical. With its broad temperature range (-40 to 125 °C) and food-grade stainless steel housing, the U12 Stainless Temperature Data Logger withstands process conditions from pasteurization to flash freezing and washdown. The U12 Stainless is also ideal for high-temperature or deep underwater applications.

Measurement range: -40° to 125°C (-40° to 257°F)
Accuracy: ± 0.25°C from 0° to 50°C (± 0.45°F from 32° to 122°F), see Plot A in manual
Resolution: 0.03°C at 25°C (0.05°F at 77°F), see Plot A in manual
Drift: 0.05°C/year + 0.1°C/1000 hrs above 100°C (0.09°F/year + 0.2°F/1000 hrs above 212°F)

Response time in 1 m/s (2.2 mph) airflow
U12-015: < 10 minutes, typical to 90%
U12-015-02: 2.25 minutes, typical to 90%

Response time in water
U12-015: < 3.5 minutes, typical to 90%
U12-015-02: 20 seconds, typical to 90%

Time accuracy: ± 2 minute per month at 25°C (77°F), see Plot B in manual
Operating environment: Air, water, steam, 0 to 100% RH

Operating temperature
Logging: -40° to 125°C (-40° to 257°F)
Launch/readout: 0° to 50°C (32° to 122°F), per USB specification

Battery life: 3 year typical use, factory replaceable
Memory: 64K bytes (43,000 12-bit measurements)
Construction: Food-grade 316 Series Stainless Steel

Weight
U12-015: 72 g (2.5 oz)
U12-015-02: 82 g (2.9 oz)

Logger dimensions: 17.5 x 101.6 mm (0.69 x 4.00 inches)
Probe dimensions: (U12-015-02 only): 4 x 124 mm (0.16 x 4.90 inches)
Pressure/depth rating: 2200 psi (1500 m/4900 ft) maximum
Vibration rating: Navy spec: NAVMAT P-9492 (non-probe model only)
NIST certificate: Available for additional charge; temperature range -30° to 120°C (-22° to 248°F)

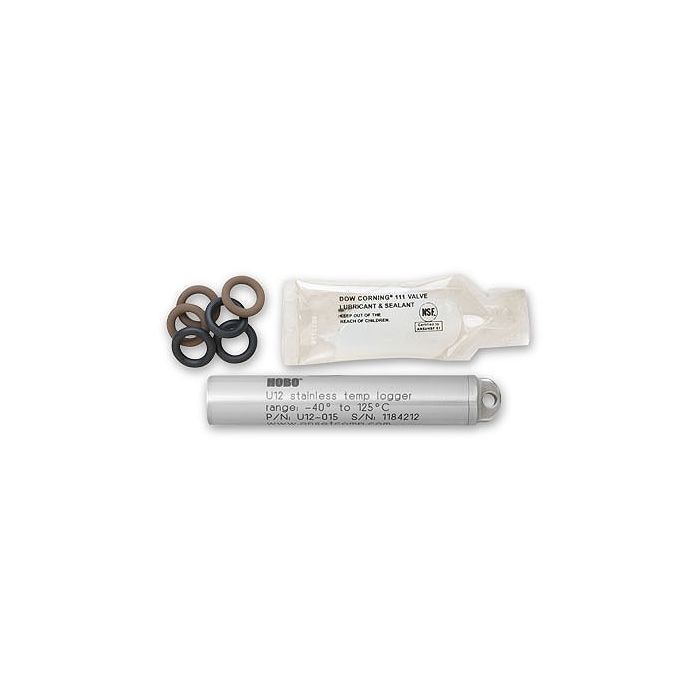

  • HOBO U12 Stainless Temperature Logger
  • O-Ring replacement kit
Questions & Answers
No Questions
Did you find what you were looking for?

Select Options

  Products 0 Item Selected
Part #
Description
Price
Stock
Quantity
HOBO U12 Stainless Temperature Loggers
U12-015
HOBO U12 stainless steel temperature logger
$359.00
Check Availability
HOBO U12 Stainless Temperature Loggers
U12-015-02
HOBO U12 stainless steel temperature logger, 5" probe
$535.00
Check Availability
