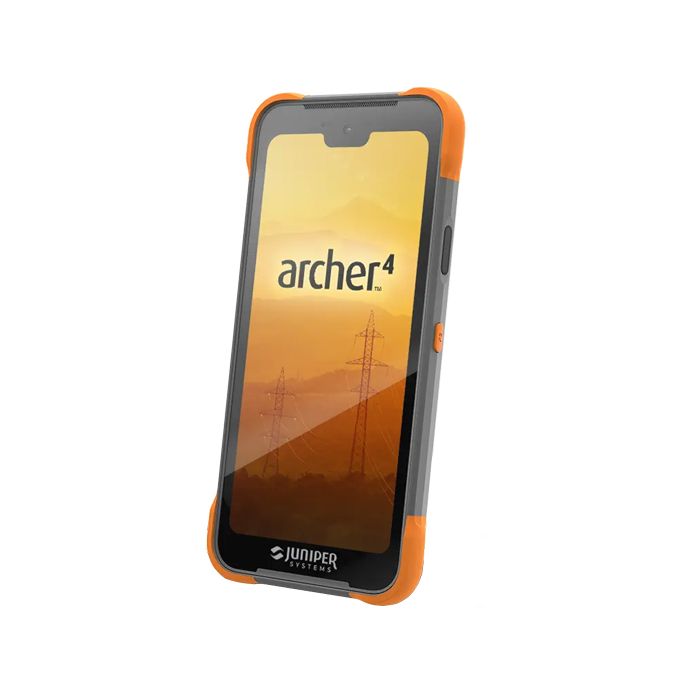

Juniper Archer 4 Rugged Handheld Computers

The Juniper Archer 4 Rugged Handheld features a power-efficient Qualcomm processor, Android 14 operating system, and ultra-rugged ergonomic design for frequent data entry in the field.

Features

  • 5G Cellular with 4G LTE fallback
  • USB-C charging and data transfer
  • Hot-swappable batteries
Starting At $1,480.00
Stock Check Availability

Reliable Mobile Operating System
The Archer 4 runs on the Android 14 operating system and will support upgrades through Android 18, providing security and compatibility for years to come. The Archer 4 is also Google Mobile Services certified to provide users with a reliable platform for running popular data collection software.

Connectivity
The Archer 4 is a versatile communication device allowing you to stay connected to your network, the Cloud, or other devices. The processor chipset on every unit supports 5G cellular voice and data connectivity, Wi-Fi 6 compatibility, Class 1 Bluetooth 5.2 functionality, and provides dual-band GNSS location data.

All-day Usability
From its ergonomic enclosure to its sunlight-readable display, and down to its all-day battery life, the Archer 4 is built for long workdays wherever the job takes you.

Expandable
To meet the needs of any job, the capabilities of the Archer 4 can be enhanced with either modular barcode scanner or sub-meter GNSS expansion pods.

Battery
A choice of battery size means you can pack your Archer 4 with more power for a long day, or pop in the smaller battery for a more compact carrying setup. Hot-swapping batteries allows you to switch out a new battery without powering down the device and interrupting your workflow.

Built Juniper Rugged
At Juniper, they put their hardware through the wringer. Even after they meet IP68 and MIL-STD-810H standards for water, dust/debris and shock, they continue to test-to-fail so they know just how far users can push their devices. Rest assured rain, extreme temperatures, debris, and accidental drops or dunks won’t stop a productive workday with the Archer 4.

PROCESSOR

  • Qualcomm® QCM4490 octa-core up to 2.4 GHz

OPERATING SYSTEM

  • Operating system: Android™ 14
  • GMS (Google Mobile Services) certified using EDLA
  • Upgradeable through Android 18

STORAGE

  • Memory (RAM): 8 GB
  • Internal Storage (ROM): 128 GB
  • SD Card Storage up to 512 GB

WIRELESS CONNECTIVITY

  • 5G with 4G LTE fallback, Dual Nano SIM card slots
  • Cellular: LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B20/B25/B26/B28a/B66/B71, LTE-TDD: B38/B40/B41, 5G: N1, N2, N5, N41, N66, N71, N77, N78
  • Wi-Fi®: 6E 802.11 2.4/5 GHZ a/b/g/n/ac, 802.11 ax
  • Bluetooth® 5.2
  • Dual-band GPS, GLONASS, Beidou, Galileo, QZSS
  • NFC
  • OTG
  • USB Type-C (5Gbps, 5V power delivery)

JUNIPER RUGGED™

  • Ingress protection: IP68 waterproof & dustproof
  • Operating Temperature: -4 F to 140 F (-20 C to 60 C)
  • Meets MIL-STD-810H test procedures: Method 500.6 Low Pressure, Method 501.7 High Temperature, 502.7 Low Temperature, 503.7 Temperature Shock, 506.6 Rain, 507.6 Humidity, 510.7 Sand and Dust, 512.6 Immersion, 514.8 Vibration, 516.8 Shock

PHYSICAL

  • Weight: .72–.87 lbs (325–395 g) depending on battery and expansion configuration
  • Dimensions with 4500 mAh battery: 174 x 85 x 15 mm
  • Dimensions with 8300 mAh battery: 174 x 85 x 22 mm
  • 2 user programmable buttons

DISPLAY

  • 540 Nits typical
  • Screen size (diagonal): 6.26”
  • Screen resolution: 2280 x 1080 FHD+
  • Capacitive multi-touch interface for wet conditions
  • Chemically-strengthened Gorilla® Glass 5
  • Optimized for extreme environments including wet touch

CAMERA

  • Front: 16 MP
  • Rear: 48 MP with LED illumination

EXPANSIONS

  • Optional 1D/2D barcode add-on
  • Sub-meter GNSS receiver (RTK capable)

BATTERY

  • Removable Li-ion battery
  • Battery size: 4500 mAh (standard) or 8300 mAh (optional upgrade)
  • Internal 300 mAh battery allows for hot-swapping

CERTIFICATIONS AND STANDARDS

  • IC/FCC/CE
  • UKCA
  • ROHS, REACH, REACH Restriction Article, EU POP, WEEE
  • California Prop 65
  • TSCA
  • Bluetooth SIG
  • RCM
  • Japan Radio (TELEC, JATE)
  • Brazil ANATEL
  • SCIP
  • Canada Prohibition
  • ERP, CEC, DOE
  • PTCRB
  • Global Certification Forum (GCF)
  • AT&T Network Approved

  • Main unit
  • Removable Lithium-Ion Battery
  • Adjustable Hand Strap
  • Hand Strap Loop and Screws
  • T6 Torx Screwdriver
  • Quick Start Guide
