KISTERS FCD Field Calibration Devices

The KISTERS FCD Field Calibration Device checks rain gauges in the field for accuracy.

Features

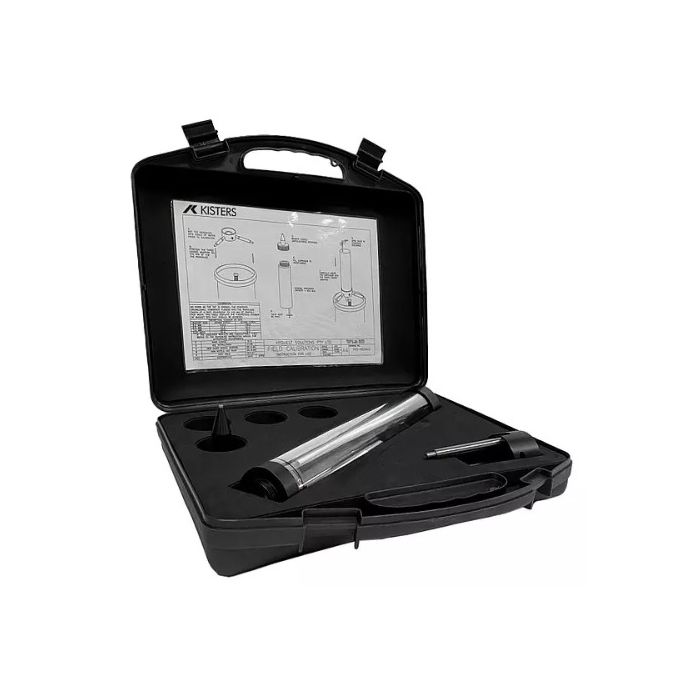

  • Compact, light-weight, portable, packed in a robust carry case
  • Corrosion-resistant (made of stainless steel, nickel silver and UV stabilized Delrin)
  • No maintenance required
Starting At $673.00
Stock Check Availability

Overview
The KISTERS Field Calibration Device (FCD) checks rain gauges in the field for accuracy. The portable, lightweight device effectively enables field technicians to run functional tests and verifications of any rain gauge in the field. The use of FCD saves time and money because the tipping bucket rain gauges can remain fixed in their location without the need for dismantling and transport and with very short downtimes for calibration only.

Mechanics
FCD checks whether a rain gauge is providing accurate readings: It discharges a certain volume of water into the rain gauge collector. Then, the number of tips has to be counted and checked with the calibration specifications.

Material

  • Body: synthetic thermoplastic resin (polycarbonate)
  • Nozzle: Delrin and nickel silver
  • Vent: stainless steel
  • Adaptor: Delrin

Capacity

  • 653mL (used with TB3, TB4, TB6, TB7)

Nozzle

  • 50mm/hr or 100mm/hr

Scope of Delivery

  • One nozzle included
  • Calibration specifications
  • Carry case



Questions & Answers
No Questions
Did you find what you were looking for?

Select Options

  Products 0 Item Selected
Part #
Description
Price
Stock
Quantity
KISTERS FCD Field Calibration Devices
I-002982
FCD-653/50 field calibration device, 50mm/hr nozzle
$673.00
Check Availability
KISTERS FCD Field Calibration Devices
I-002983
FCD-653/100 field calibration device, 100mm/hr nozzle
$686.00
Check Availability
