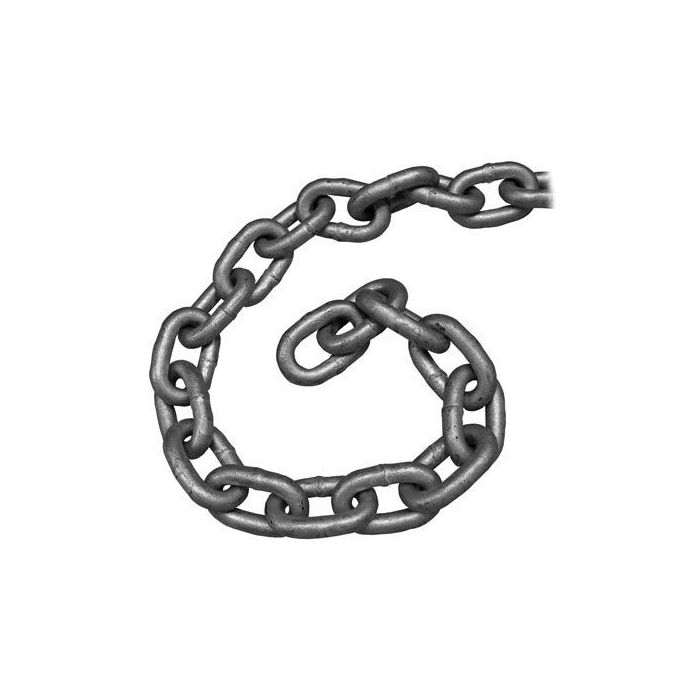

NexSens Galvanized Chain

Galvanized chain is used to construct mooring lines for buoy-based water quality applications requiring single or multi-point moorings.

Features

  • Ideal for mooring NexSens data buoys
  • Galvanized steel construction
  • Provides corrosion resistance in fresh and salt water applications
Starting At $2.00
Stock Check Availability
When setting up a mooring system to hold a buoy, a heavy bottom chain is a necessity. This chain must be laid out on the bottom to set and hold the anchor properly, create a catenary curve, and absorb shock. A good rule of thumb for heavy chain length is 1.5 times the maximum water depth. A smaller sized chain or mooring line should be used to connect the heavy bottom chain to the data buoy at the surface.



Size Weight/ft (lbs) Working Load Limit (lbs)
3/16" 0.41 750
1/4" 0.68 1250
5/16" 1.02 1900
3/8" 1.47 2650
1/2" 2.52 4500
5/8" 4.06 6900
3/4" 5.81 10600
Questions & Answers
No Questions
Did you find what you were looking for?

Select Options

  Products 0 Item Selected
Part #
Description
Price
Stock
Quantity
NexSens Galvanized Chain
HGPC187i
Galvanized chain, 3/16", priced per ft.
$2.00
Check Availability
NexSens 1/4" Galvanized Chain
HGPC250i
Galvanized chain, 1/4", priced per ft.
$3.00
Check Availability
NexSens 3/8" Galvanized Chain
HGPC375i
Galvanized chain, 3/8", priced per ft.
$6.00
Check Availability
NexSens 1/2" Galvanized Chain
HGPC500i
Galvanized chain, 1/2", priced per ft.
$10.00
Check Availability
NexSens 5/8" Galvanized Chain
HGPC625i
Galvanized chain, 5/8", priced per ft.
$17.00
Check Availability
NexSens 3/4" Galvanized Chain
HGPC750i
Galvanized chain, 3/4", priced per ft.
$25.00
Check Availability
