NexSens UW Receptacle to Flying Lead Cables

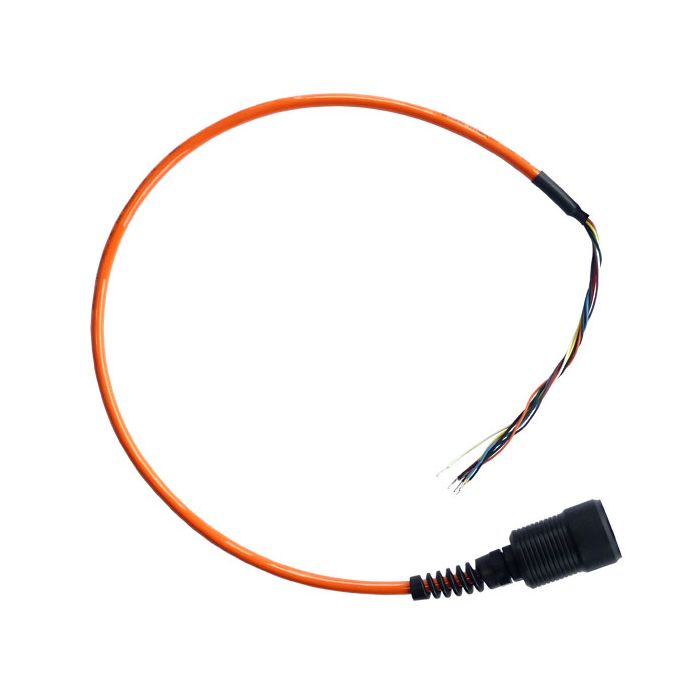

The UW receptacle to flying lead cable is used for wiring sensors with integrated UW plug connectors to a data logger terminal strip.

Features

  • Includes sensorBUS for connecting to other smart sensors
  • Easily connects to UW underwater cables
  • Available in lengths listed below or custom lengths
Starting At $130.00
Stock SEE TABLE BELOW
The UW receptacle to flying lead cable is used for wiring sensors with integrated UW plug connectors to a data logger terminal strip.

The UW-FL cables incorporate sensorBUS connectivity for connection to include three industry standard digital interfaces (1-wire temp string, RS-485 multi-drop and SDI-12) along with both 12 and 5 VDC power. Cables are constructed of (8) 22 AWG wires, including a shielded twisted pair for RS-485 signals, an overall shield, and a heavy-duty, UV stabilized poly-urethane jacket. The connectorized cable end includes a flexible strain-relief and a plug fitting. Double o-rings (both gland and face seals) ensure a reliable and water-tight connection.
Questions & Answers
No Questions
Did you find what you were looking for?

Select Options

  Products 0 Item Selected
Part #
Description
Price
Stock
Quantity
NexSens UW Receptacle to Flying Lead Cables
UW-FL1R
UW receptacle to flying lead cable, 1m
$130.00
3 Available
/
UW-FL2R
UW receptacle to flying lead cable, 2m
$145.00
2 Available
NexSens UW-FL3R Flying Lead Cable Assembly
UW-FL3R
UW receptacle to flying lead cable, 3m
$160.00
2 Available
NexSens UW-FL3R Flying Lead Cable Assembly
UW-FL4R
UW receptacle to flying lead cable, 4m
$175.00
Check Availability
NexSens UW Receptacle to Flying Lead Cables
UW-FL5R
UW receptacle to flying lead cable, 5m
$190.00
Check Availability
NexSens UW-FL10R Flying Lead Cable Assembly
UW-FL10R
UW receptacle to flying lead cable, 10m
$265.00
Check Availability
NexSens UW-FL20R Flying Lead Cable Assembly
UW-FL20R
UW receptacle to flying lead cable, 20m
$415.00
Check Availability
NexSens UW-FL30R Flying Lead Cable Assembly
UW-FL30R
UW receptacle to flying lead cable, 30m
$565.00
Check Availability
