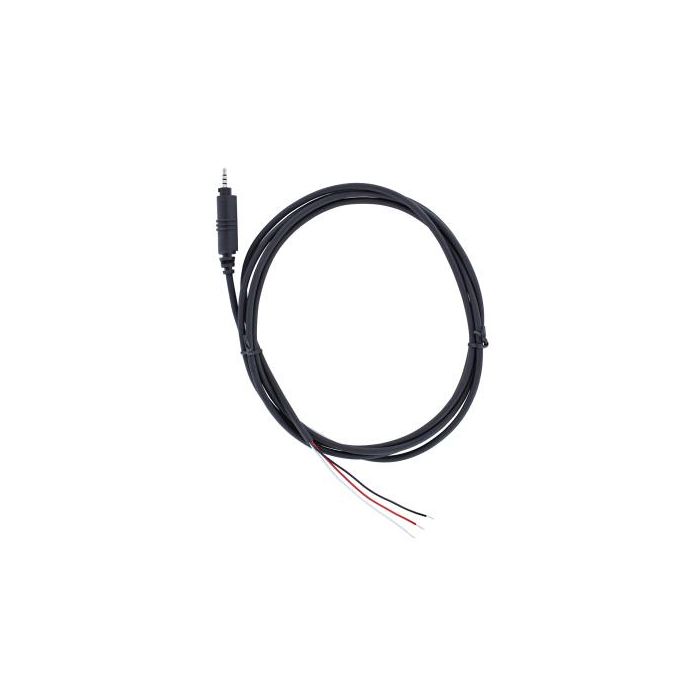

HOBO Self-Describing DC Voltage Input Cable

The Onset DC voltage input cables offer integrated strain relief to keep it connected to the logger, and features self-describing technology to automatically communicate configuration information to the logger.

Features

  • Multiple measurement ranges available
  • Cable length: 1.8 m (6 ft)
Starting At $37.00
Stock Check Availability

Overview
The Onset DC voltage input cables offer integrated strain relief to keep it connected to the logger, and features self-describing technology to automatically communicate configuration information to the logger. For use with the MX1104 and MX1105 HOBO loggers.

Measurement ranges:

  • 0 to 2.5 V (w/ SD-VOLT-2.5)
  • 0 to 5 V (w/ SD-VOLT-05)
  • 0 to 10 V (w/ SD-VOLT-10)
  • 0 to 24 V (w/ SD-VOLT-24)
  SD-VOLT-2.5 SD-VOLT-05 SD-VOLT-10 SD-VOLT-24
Maximum Input 0 to 2.5 VDC 0 to 5 VDC 0 to 10 VDC 0 to 24 VDC
Accuracy ±0.1 mV ±0.1% of reading ±0.2 mV ±0.3% of reading ±0.4 mV ±0.3% of reading ±1.0 mV ±0.3% of reading
Impedance > 1 MΩ 20 KΩ 20 KΩ 48 KΩ
Resolution 0.002% of full scale
Cable Length 1.83 m (6 ft)
Questions & Answers
No Questions
Did you find what you were looking for?

Select Options

  Products 0 Item Selected
Part #
Description
Price
Stock
Quantity
HOBO Self-Describing DC Voltage Input Cable
SD-VOLT-2.5
Self-Describing DC Voltage Input Cable (0-2.5V)
$37.00
Check Availability
HOBO Self-Describing DC Voltage Input Cable
SD-VOLT-05
Self-Describing DC Voltage Input Cable (0-5V)
$49.00
Check Availability
HOBO Self-Describing DC Voltage Input Cable
SD-VOLT-10
Self-Describing DC Voltage Input Cable (0-10V)
$49.00
Check Availability
HOBO Self-Describing DC Voltage Input Cable
SD-VOLT-24
Self-Describing DC Voltage Input Cable (0-24V)
$49.00
Check Availability
