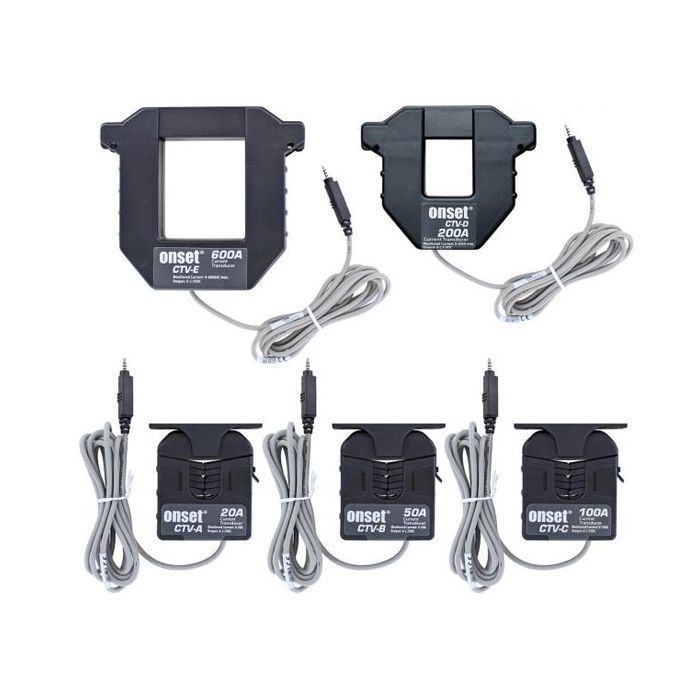

HOBO Self-Describing Current Transformer Sensor
The Onset self-describing current transformer sensor is a split-core AC current transformer featuring self-describing technology and is used with HOBO MX1104 and MX1105 multi-channel loggers.
Features
- Available in 5 ranges: 2-20, 5-50, 10-100, 20-200, 60-600
- Locking jack to ensure sensor is connected and stays connected
Starting At
$135.00
Stock
Check
Availability
Fondriest Exclusives
- Expedited repair and warranty service
- Lifetime technical support
- More
Overview
The Onset Self-Describing Current Transformer Sensor is for use with HOBO MX1104 and MX1105 multi-channel data loggers. This split-core AC current transformer offers integrated strain relief, so the probe is secured to the logger, and it features Self-Describing technology to automatically communicate configuration information to the logger, without any programming or extensive user setup.
| Part No. | Current Range (Amps AC) | Response Time (mS) from 10%-90% of Amplitude | Dimensions | |||
| Window Size | Outer Length | Outer Width | Height | |||
| SD-CT-020 | 2-20 | 440 | 28 x 20 mm (1.1 x 0.8 in.) | 79mm (3.1 in.) | 71mm (2.8 in.) | 36mm (1.4 in.) |
| SD-CT-050 | 5-50 | 200 | 28 x 20 mm (1.1 x 0.8 in.) | 79mm (3.1 in.) | 71mm (2.8 in.) | 36mm (1.4 in.) |
| SD-CT-100 | 10-100 | 100 | 28 x 20 mm (1.1 x 0.8 in.) | 79mm (3.1 in.) | 71mm (2.8 in.) | 36mm (1.4 in.) |
| SD-CT-200 | 20-200 | 450 | 39 x 32 mm (1.54 x 1.26 in.) | 100mm (3.92 in.) | 120mm (4.72 in.) | 36mm (1.4 in.) |
| SD-CT-600 | 60-600 | 490 | 74 x 62 mm (2.92 x 2.46 in.) | 135mm (5.3 in.) | 150mm (5.91 in.) | 36mm (1.4 in.) |
Questions & Answers
Select Options
Products
0 Item Selected
Part #
Description
Price
Stock
Quantity
SD-CT-020
Self-Describing Current Transformer Sensor (0-20 Amp)
$135.00
Check Availability
Notice: At least 1 product is not available to purchase online
