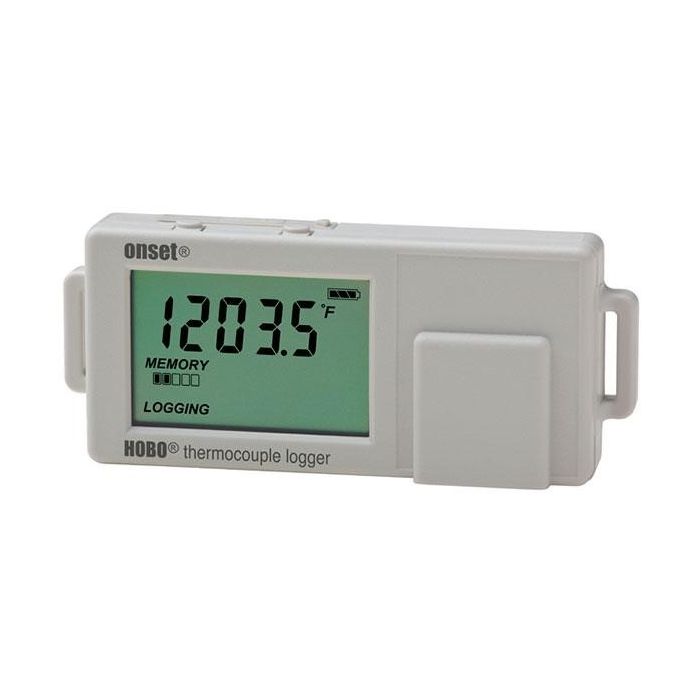

HOBO Thermocouple Temperature Loggers

The Onset HOBO UX100 single-channel thermocouple data logger measures and records temperature in indoor environments.

Features

  • Accepts J, K, T, E, R, S, B or N type thermocouple probes
  • Visual high & low alarm thresholds
  • Record ambient temperature with internal thermistor
Your Price $185.00
Stock Check Availability

Overview
A single-channel thermocouple data logger to measure and record temperature in indoor environments. Designed for a broad range of monitoring applications - from industrial process monitoring to concrete maturity testing - this logger provides exceptional flexibility by accepting J, K, T, E, R, S, B or N type thermocouple probes (sold separately).

Benefits

  • Internal 10K thermistor for cold-junction compensation of thermocouple output
  • Configure high/low temperature alarms with HOBOware software
  • Set up burst logging during certain conditions
  • Built in LCD screen (temperature, logging status, battery use and memory)

 *Requires USB cable and HOBOware software (available in USB, CD or Download).

  • Logging: -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing); logger accuracy from 0° to 50°C (32° to 122°F)
  • Launch/readout: 0° to 50°C (32° to 122°F) per USB specification
  • Resolution: 22-bit
  • Logging rate: 1 second to 18 hours, 12 minutes, 15 seconds
  • Logging modes: Normal, Burst or Statistics
  • Memory modes: Wrap when Full or Stop when Full
  • Start modes: Immediately, Push Button, Date & Time or Next Interval
  • Stop modes: When Memory Full, Push Button, or Date & Time
  • Restart mode: Push Button
  • Time accuracy: ±1 minute per month at 25°C (77°F), see Plot B
  • Battery life: 1 year, typical with logging rate of 1 minute and sampling interval of 15 seconds or greater
  • Battery type: One 3V CR2032 lithium battery
  • Memory: 512 KB (208,076 measurements, maximum)
  • Download type: USB 2.0 interface
  • Full memory download time: 1 minute, 30 seconds
  • LCD: LCD is visible from: 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range
  • Size: 3.66 x 5.94 x 1.52 cm (1.44 x 2.34 x 0.6 in.)
  • Weight: 30 g (1.06 oz)
  • Environmental rating: IP50

 Internal 10K Thermistor (Temperature)

  • Range: Logging: -20° to 70°C (-4° to 158°F)
  • Accuracy: ±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F)
  • Resolution: 0.024°C at 25°C (0.04°F at 77°F)
  • Drift: <0.1°C (0.18°F) per year


Thermocouple

Type Range Accuracy Resolution
J -210° to 760°C (-346° to 1,400°F) ±0.6°C (±1.08°F) ± thermocouple probe accuracy 0.03°C (0.06°F)
K -260° to 1,370°C (-436° to 2,498°F) ±0.7°C (±1.26°F) ± thermocouple probe accuracy 0.04°C (0.07°F)
T -260° to 400°C (-436° to 752°F) ±0.6°C (±1.08°F) ± thermocouple probe accuracy 0.02°C (0.03°F)
E -260° to 950°C (-436° to 1,742°F) ±0.6°C (±1.08°F) ± thermocouple probe accuracy 0.03°C at (0.05°F)
R -50° to 1,550°C (-58° to 2,822°F) ±2.2°C (±3.96°F) ± thermocouple probe accuracy 0.08°C (0.15°F)
S -50° to 1,720°C (-58° to 3,128°F) ±2.2°C (±3.96°F) ± thermocouple probe accuracy 0.08°C (0.15°F)
B 550° to 1,820°C (1,022° to 3,308°F) ±2.5°C (±4.5°F) ± thermocouple probe accuracy 0.1°C (0.18F)
N -260° to 1,300°C (-436° to 2,372°F) ±1.0°C (±1.8°F) ± thermocouple probe accuracy 0.06°C (0.11°F)




  • HOBO UX100-014M Single Channel Thermocouple Data Logger
  • Command strip
  • Double-sided tape
  • Hook & loop strap
