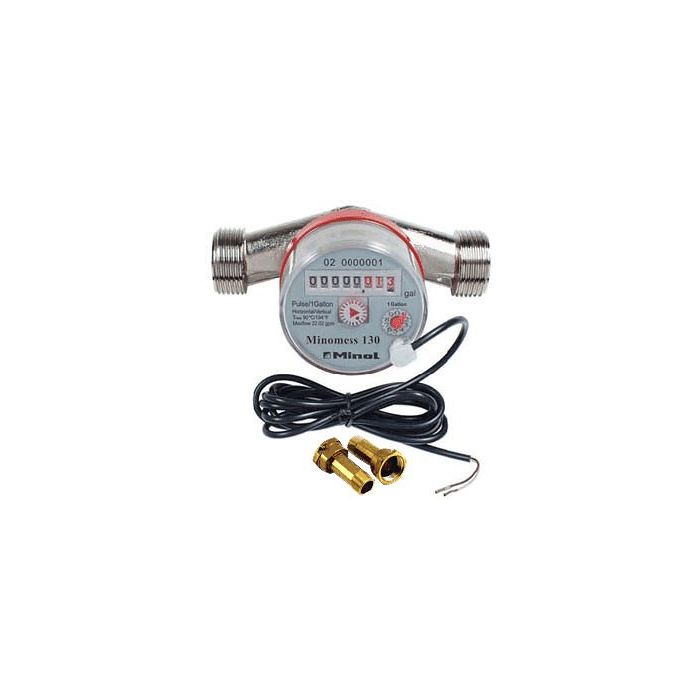

HOBO No-Lead Minol Pulse Output Water Flow Meter
The Onset no-lead Minol water flow meter measures cold and hot water flow rates and is designed for deployment in apartments, assisted living communities, and other commercial buildings.
Features
- Measurement range 0.25 to 22 gpm
Your Price
$294.00
Stock
Check
Availability
Fondriest Exclusives
- Expedited repair and warranty service
- Lifetime technical support
- More
Overview
The Onset no-lead Minol water flow meter is both compact and affordable and can measure cold and hot water flow rates. The small-size is designed for deployment in apartments, assisted living communities, and other commercial buildings.
Note: the T-MINOL is configured for use with 3/4" pipes. (Use step-ups or step-downs to deploy the T-MINOL with 1/2" or 1" pipe diameters.)
| Measurement range: .25 to 22.0 |
| Accuracy: AWWA spec 97 - 103% |
| Connection size: ANSI/ASME B1.20.1-1983; 1-11.5 SNPSM thread; 5/8 x 3/4 in ID |
| Dimensions: length 5.12 in, width 2.5 in, height 3.15 in |
| Cable length: 59 in. |
| Water temperature range: 40F to 194F |
| Meter max reading: 99,999,999 US gal |
| Resolution: 1 contact closure per gal |
| Body: nickel-plated brass |
| Weight: 1.32 lbs |
| Pressure drop: < 8.70 psi typical @ 22 gpm; < 3.6 psi @ 11 gpm |
| Reed switch: dry contact |
| UL Listed |
| ABSI/NSF61 Certified |
Questions & Answers
Select Options
Products
0 Item Selected
Part #
Description
Price
Stock
Quantity
T-MINOL-130-NL
No-lead Minol pulse output water flow meter, 0.25 to 22 gpm
$294.00
Check Availability
Notice: At least 1 product is not available to purchase online
