PME miniDOT Dissolved Oxygen Logger

The PME miniDOT Logger is a completely submersible instrument that logs dissolved oxygen and temperature measurements.

Features

  • Long-lasting sensor with stable calibration
  • Up to 1-year battery life with user-replaceable batteries
  • Also records time, date, and battery voltage
Your Price Call
Stock SEE TABLE BELOW

Overview
The PME miniDOT is a submersible instrument that includes an optical dissolved oxygen sensor, a temperature sensor, batteries and a micro SD memory card. Data is recorded internally with a sample interval from once per minute to once per hour and can be offloaded to a computer via USB cable.

Internal Storage
The miniDOT sensor is an optode that measures lifetime-based luminescence quenching of a thin membrane. The sensing foil contains a coating with a variable fluorescence that depends on oxygen concentration in the surrounding water. The sensor can compute dissolved oxygen concentration in mg/L and record these measurements internally. Each logger is factory-calibrated at 12 dissolved oxygen concentrations, each at 8 temperatures, for a total of 96 calibration points.

Included with miniDOT logger (Part #7450):

  • miniDOT dissolved oxygen logger

Included with miniDOT logger with wiper bundle (Part #9190):

  • miniDOT dissolved oxygen logger
  • miniWIPER anti-fouling sensor wiper
  • miniWIPER bracket
  • anti-fouling copper plate (with hardware)
Questions & Answers
How does the miniDOT measure dissolved oxygen?
The PME miniDOT determines DO in water using an optode that measures flourescence.
What software comes with the dissolved oxygen logger?
The PME miniDOT includes free Java-based Windows software for configuration the logger and offloading data. The software will also compute oxygen saturation from the miniDOT logger measurements. A USB to micro USB cable is sold separately and required to communicate with the logger.
How long will the battery last?
With a 1-minute sample interval, the logger will remain powered for approximately 1-year.
What are the recommended replacement batteries for the miniDOT logger?
PME states that Alkaline batteries are good for short deployments, where lithium batteries are best for longer deployments, or deployments in cold environments. Battery life and other options are discussed further on page 10 of manual.
Is the software the same for the PME miniDOT and Cyclops-7 Loggers?
While the software is similar for these loggers, in that you can change sampling rates and other settings, they are different programs. The software is loaded onto the logger and can be accessed by connecting to a computer with the USB communication cable.
What is the expected lifespan for the PME miniDOT Logger?
With proper care, maintenance and calibrations PME Loggers can operate well beyond 5 years.
Did you find what you were looking for?

Select Options

  Products 0 Item Selected
Part #
Description
Price
Stock
Quantity

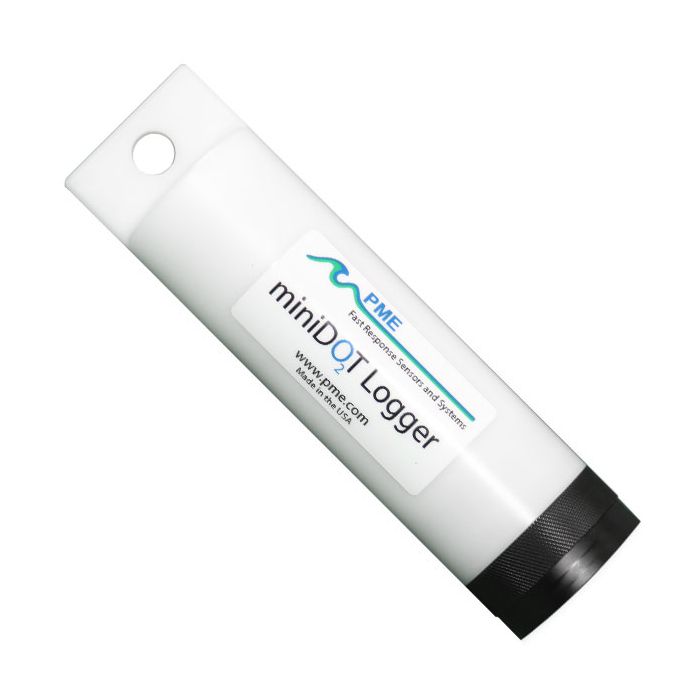

An angled side view of the PME miniDOT dissolved oxygen logger.
7450
miniDOT dissolved oxygen & temperature logger
Request Quote
5 Available
PME miniDOT Dissolved Oxygen Logger
9190
miniDOT dissolved oxygen & temperature logger with miniWIPER anti-fouling sensor wiper & bracket attachment
Request Quote
2 Available
