Proactive Athena Peristaltic Pump

The Proactive Athena is a peristaltic pump mounted in the Pelican 1300 case and is made for durability and provides consistent flow rates.

Features

  • Pumps up to 2.5 liters per minute and as low as 40 mL per minute
  • Constant Voltage Boosting Technology boosts battery voltage for longer run times and steady flow rates
  • LCD display provides real-time flow rates, allowing the user to quickly make changes as needed
Starting At $1,242.83
Stock More On The Way

Overview
The Proactive Athena peristaltic pump is lightweight and compact. Simply attach an external power source such as a 12-volt battery to drive the pump. A high-performance motor consumes only 3 amps at maximum draw, making it an extremely efficient pump.

Durable
The rugged Pelican 1300 case enclosure is made of impact and corrosion-resistant ABS plastic to withstand demanding work conditions. Incorporating the most accurate and precise variable speed controller for consistent flow rates ensures the technician's reliable sample integrity. The system features a built-in digital display and sealed push buttons that control the pump.

  • Pumps up to 2.5 liters per minute or as low as 40 mLs per minute*
  • Suction lift up to 26 feet
  • Supplied with one pump head
  • 10 feet of DC battery clamps to hook up for super long sampling events
  • Dimensions: 9 3/4" Depth x 13" Width x 6 3/4" Height
  • Weight: 8 Pounds

*Test conducted with 3 feet of size 36 Masterflex tubing

  • (1) Athena peristaltic pump, mounted in Pelican 1300 case
  • (1) 10' DC power cord with battery clamps
Questions & Answers
What depth can this pump lift from?
The Pegasus Athena Peristaltic Pump can lift up to 26 feet.
What is the difference between the Athena and the Alexis?
The Athena Peristaltic Pump requires an external power source, such as at 12 V battery. The Alexis pump has a rechargeable internal battery and AC power connector capability.
I blew the fuse in my Athena pump, can I replace it myself?
Yes, the fuse for the pump is replaceable. You will need a 7.5A blade fuse, and this can be purchased at an auto parts store.
What is the difference between the Athena and Electra peristaltic pumps?
The Athena has an integrated LCD display for adjusting flow rates, while the Electra uses a rheostat (dial) on the side of the pump.
What tubing is needed for sampling with this peristaltic pump?
There are two types of tubing needed. One for use in the pump head (silicone tubing) and the other for down-hole sampling (LDPE or HDPE). Both can be found in the accessories tab on the product page.
What is the LVD light flashing for on the LCD display of the Proactive Athena Peristaltic Pump?
The flashing LVD light on the Proactive Athena Peristaltic Pump indicates that the input voltage has fallen below the threshold required for the pump and the battery needs to be charged.
Did you find what you were looking for?

Select Options

  Products 0 Item Selected
Part #
Description
Price
Stock
Quantity

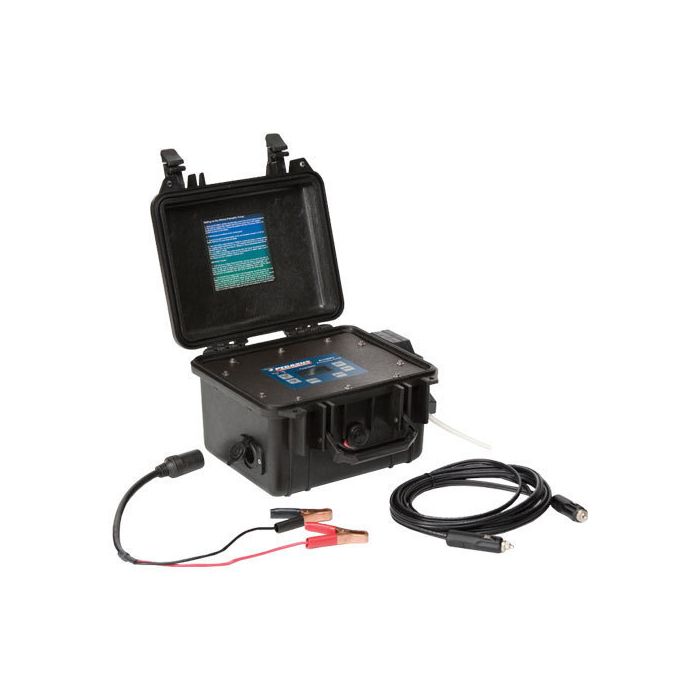

Component view of Pegasus Athena Peristaltic Pump showing the case-mounted pump, discharge tubing, and DC power adapters.
ATHPERI-10000
Athena peristaltic pump, mounted in Pelican 1300 case
$1,242.83
More On The Way
Proactive Athena Peristaltic Pump
ATHPERI-10000DPH
Athena2 peristaltic pump with double pump heads, mounted in Pelican 1300 case
$1,403.54
Check Availability
