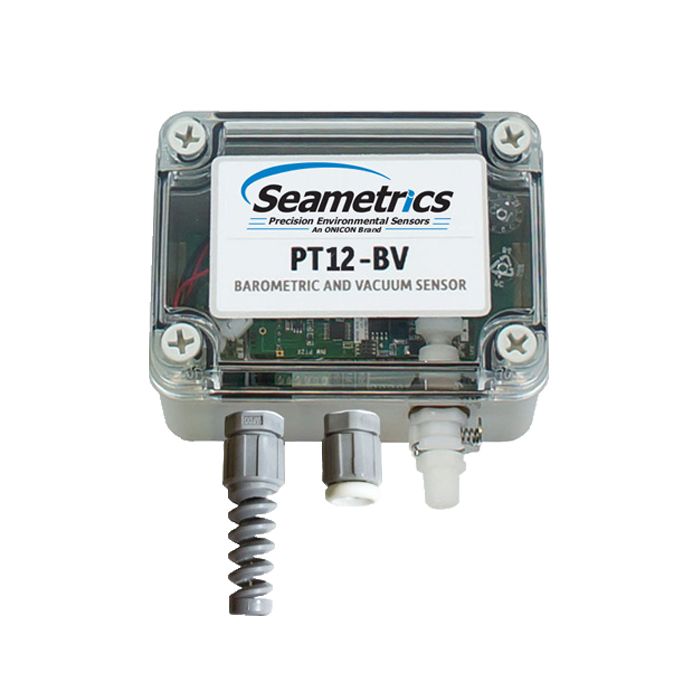

Seametrics PT12-BV Barometric Pressure Sensor

The Seametrics PT12-BV provides barometric reference for non-vented PT12 pressure sensors.

Features

  • Measures pressure and temperature
  • Provides barometric reference for non-vented PT12 pressure sensors
  • Automatically compensates for barometric pressure with SDI-12 output
Your Price $795.00
Stock 1 AVAILABLE

Overview
The Seametrics PT12-BV provides barometric reference for non-vented PT12 pressure sensors. When using SDI-12 output, data is automatically compensated for barometric pressure, eliminating the need for post-processing.

Benefits

  • Weatherproof box constructed with ABS – IP66/67, fluorocarbon, and Buna N (nitrile rubber)
  • SDI-12 v1.3 interface
  • Barometrically compensate attached absolute sensor for level measurement (SDI-12 only)
  • Operates on low power



Questions & Answers
My sensor states an accuracy of +/- 0.05 % (FSO). What does FSO mean and what does that represent in psia?
FSO or Full-Scale Output refers to the accuracy of readings over the given range of the sensor, both high and low and while under other constraints. For example, the PT12-BV with a range of 0-16 psia, under typical/static conditions (+/- 0.05 % or 0.0005) will read with +/- 0.008 psia accuracy.
Did you find what you were looking for?

Select Options

  Products 0 Item Selected
Part #
Description
Price
Stock
Quantity
Seametrics PT12-BV Barometric Pressure Sensor
2K13422
PT12-BV barometric pressure sensor with weatherproof box, SDI-12 output
$795.00
1 Available
