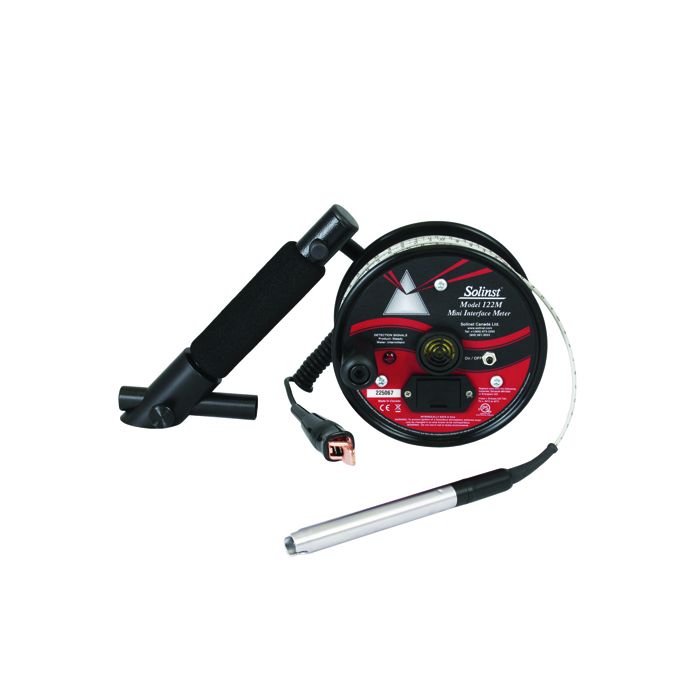

Solinst Model 122M Mini Oil/Water Interface Meters
The Solinst Model 122M Mini Interface Meter with PVDF laser marked cable is a convenient small version of the Model 122 that can easily fit in a backpack.
Features
- Sensor accuracy to 1/200 ft or 1.0 mm
- Easy access battery: minimum 300 hours of life
- Certified intrinsically safe
List Price
$912.00
Starting At
$866.40
Stock
Check
Availability
Fondriest Exclusives
- Free ground shipping
- Expedited repair and warranty service
- Lifetime technical support
- More
Overview
The Solinst Mini Oil/Water Interface Meters give clear and accurate measurements of product level and thickness in wells and tanks. Determination of both light (floating) non-aqueous phase liquids (LNAPL) and dense (sinking) non-aqueous phase liquids (DNAPL) is quick and easy.
Design
The Model 122M Mini Interface Meter with PVDF laser marked cable is a convenient small version, which can easily to fit in a backpack, or an optional custom mini carry case. It uses narrow laser marked PVDF cable, in 80 ft or 25m lengths. The Mini Interface Meter enhanced electronics include automatic circuitry testing; 300 hours of on-time battery life; clear signals; and high accuracy. The circuits are powered by one standard 9V battery housed in easy-access drawer in the faceplate.
Mechanics
The 122M uses the P8 Probe, which is 5/8" in diameter (16mm) and stainless steel construction. It is pressure proof up to 500 psi. The beam is emitted from within a Hydex cone-shaped tip. The tip is protected by an integral stainless steel shield, and is excellent for the vast majority of product monitoring situations. The 0.12" (3mm) coaxial cable has a durable PVDF jacket with permanent laser markings every 1/100 ft. or each millimeter. The cable has a braided copper outer conductor, a stranded stainless steel central conductor, and a smooth chemical-resistant surface that is easy to decontaminate.
Questions & Answers
Select Options
Products
0 Item Selected
Part #
Description
Price
Stock
Quantity
110641
Model 122M mini oil/water interface meter with P8 probe & imperial increments, 80'
$866.40
Check Availability
Accessories
0 Item Selected
Notice: At least 1 product is not available to purchase online
