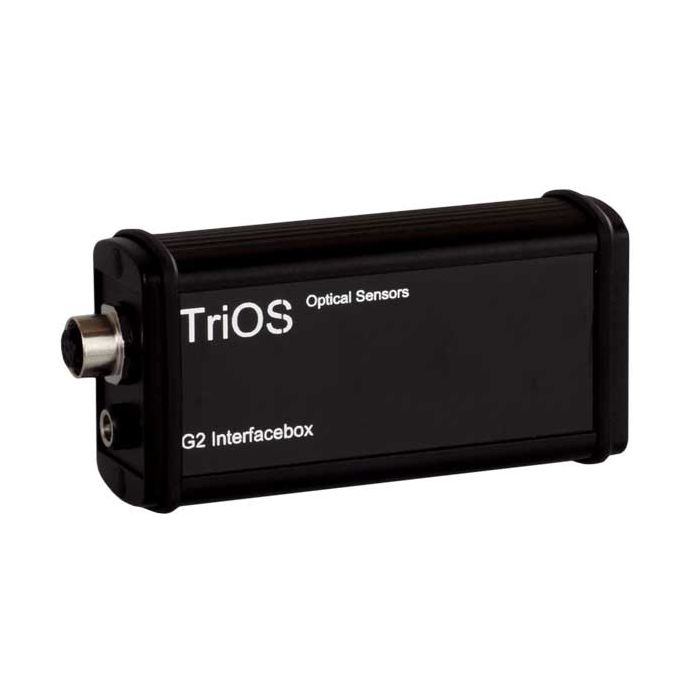

TriOS G2 Interface Box

The TriOS G2 Interface Box is designed for configuration and calibration of NICO and OPUS UV optical sensors.

Features

  • Web interface can be viewed from any browser
  • Integrated M12 plug for TriOS sensor connection
  • Integrated RJ45 connector for LAN connection
Your Price Call
Stock Check Availability
Voltage supply
24 VDC (±10 %)
Power consumption
≤ 1.5W plus sensor (WiFi version only)

Connection
1x M12 plug for TriOS G2 sensors
Standard
IEEE 802.3
Protocol
Web interface (with G2 sensors only)
Analog interfaces
No
Switch input/output
No

Standard
IEEE 802.3, IEEE 802.11 b/g/n (WiFI version only)
Connection
1x RJ-45, external WiFi antenna (SMA) (WiFi version only)
Protocol
TCP/IP (with G2 sensors only)
Web Interface
No
USB
No
Data Storage
No

Operating Temperature
0...+40 °C
~ +32 °F to +104 °F
Storage Temperature
-20...+70 °C
~ -4 °F to +158 °F
Relative air humidity
0...95 % (non-condensing)
Protection type
IP20
NEMA 1
Questions & Answers
No Questions
Did you find what you were looking for?

Select Options

  Products 0 Item Selected
Part #
Description
Price
Stock
Quantity
TriOS G2 Interface Box
11C000000
G2 interface box with RG45 communication to NICO/OPUS sensors, M12 connector input
Request Quote
Check Availability
TriOS G2 Interface Box
11C100000
G2 interface box with RG45/Wi-Fi communication to NICO/OPUS sensors, M12 connector input
Request Quote
Check Availability
