USGS Style A Staff Gauges

A USGS Style A staff gauge is used to measure water levels in lakes, rivers, reservoirs, and other bodies of surface water.

Features

  • 4 inch wide by 3.4 foot long sections are graduated every 0.02 feet
  • Designed for high accuracy & excellent readability
  • Special porcelain enamel coating offers rust & discoloration protection
Starting At $55.00
Stock SEE TABLE BELOW

Overview
A USGS-style staff gauge is used to measure water levels in lakes, rivers, reservoirs, and other surface water bodies. These gauges provide a visual indication of water level and are designed for high accuracy and excellent readability.

Durability
Each gauge is constructed of iron for maximum survivability in extreme environmental conditions. A unique porcelain enamel coats each staff gauge, protecting the instruments from rust and discoloration. Under normal conditions, the gauge will last for many years. All gauges are accurately graduated and are easily fastened to walls, piers, and other structures.

  • Material: Iron with porcelain coating
  • Length: 40.75"
  • Width: 4.00"
  • Hole Spacing: 3.50" horizontal; 9.60" vertical
  • Large Number Size: 0.75" tall
  • Small Number Size: 0.25" tall
  • Markings: Graduated every 0.02 ft.
Questions & Answers
How wide is the gauge?
The USGS Style A Staff Gauges are 4 inches wide.
How is the staff gauge mounted/installed?
The USGS Style A staff gauge comes with 1/4” diameter pre-drilled holes for mounting. It is recommended that stainless steel (316) screws are used to mount to a fixture such as a dock, bridge piling, or other sturdy structure.
Are the staff gauges NSF61 compliant?
The Cherokee staff gauges are constructed of steel with a porcelain coating. However, there is not a specific designation that these are rated for use in drinking water. More information on materials and tests that the product has undergone can be found here: https://www.cherokeeporcelain.com/infospecs/
Why is the 0.04" marker missing between each staff gauge when installed?
The 0.04 unit is “missing” between gauges because the line between the two gauges exactly aligns with where the 0.04 marker would be. When installed directly above each other with no overlap, there will not be missing any units. For example, the distance between each ft marker is still a foot.
Did you find what you were looking for?

Select Options

  Products 0 Item Selected
Part #
Description
Price
Stock
Quantity

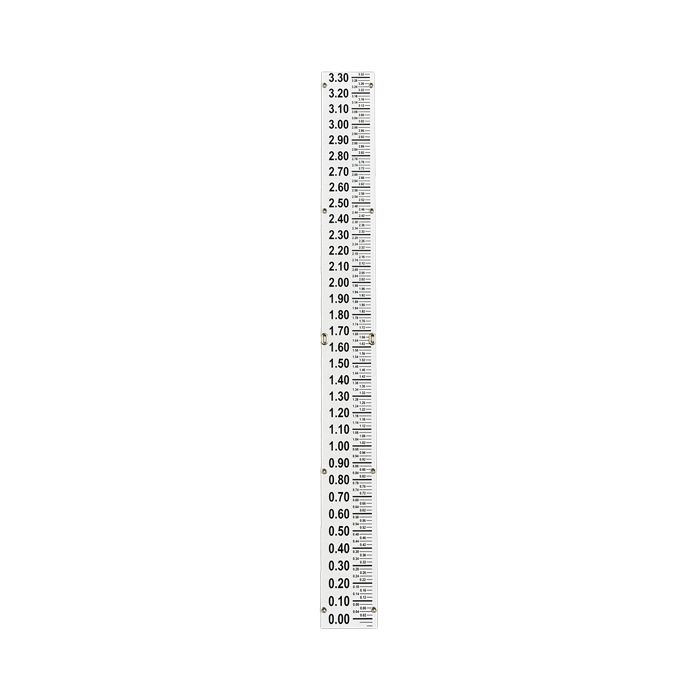

Front view of the USGS Style A staff gauge 4ft section 0.00-3.30 range.
801-001
USGS Style A staff gauge, 0.00-3.32 ft.
$55.00
6 Available
USGS Style A Staff Gauge
801-002
USGS Style A staff gauge, 3.36-6.72 ft.
$55.00
4 Available
USGS Style A Staff Gauge
801-003
USGS Style A staff gauge, 6.76-10.12 ft.
$55.00
2 Available
USGS Style A Staff Gauge
801-004
USGS Style A staff gauge, 10.16-13.52 ft.
$55.00
5 Available
USGS Style A Staff Gauge
801-005
USGS Style A staff gauge, 13.56-16.92 ft.
$55.00
5 Available
USGS Style A Staff Gauge
801-006
USGS Style A staff gauge, 16.96-20.32 ft.
$55.00
3 Available
USGS Style A Staff Gauges
801-007
USGS Style A staff gauge, 20.36-23.72 ft.
$55.00
5 Available
USGS Style A Staff Gauge
801-008
USGS Style A staff gauge, 23.76-27.12 ft.
$55.00
3 Available
USGS Style A Staff Gauges
801-009
USGS Style A staff gauge, 27.16-30.52 ft.
$55.00
3 Available
