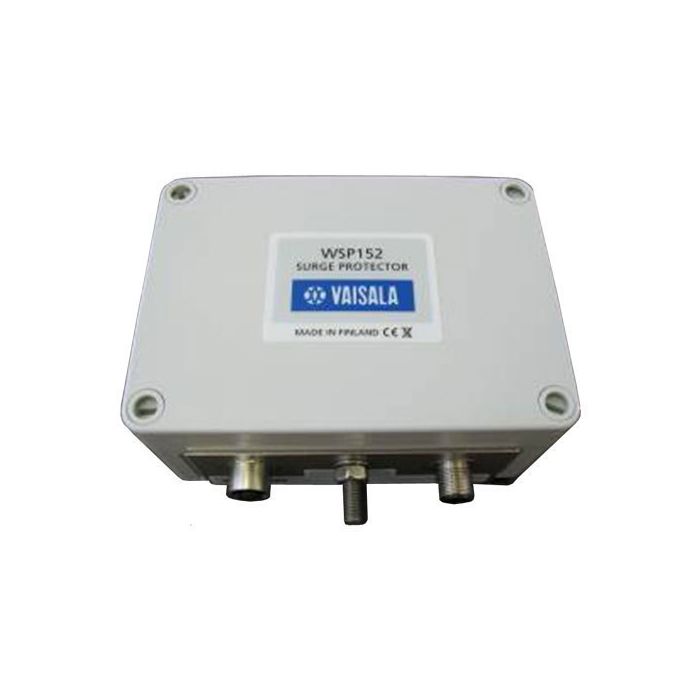

Vaisala WSP152 Surge Protector

The Vaisala WSP152 Surge Protector is a compact transient overvoltage suppressor designed for the protection of the USB connection of a PC connected to the Vaisala WXT520 or WMT52.

Features

  • Designed to protect the USB connection of a PCconnected to the Vaisala WXT510 or WMT52
  • Excellent three-stage, transient surge protection
  • Tolerates up to 10 kA surge currrents
Your Price $565.49
Stock 1 AVAILABLE

Overview
The Vaisala WSP152 Surge Protector is a compact transient overvoltage suppressor designed for the protection of the USB connection of a PC connected to the Vaisala WXT520 or WMT52. The WSP152 is designed to protect the host PC against surges entering through the USB port. Please note that the USB connection of a PC is for indoor use only.

Mechanics
The Vaisala WSP152 Surge Protector offers three-stage protection against surge currents up to 10 kA that may enter through the USB cable or the port. The WSP152 has four channels, two of which are dedicated to power lines and two for data lines. Each channel uses a three-stage protection scheme as follows: first, there are discharge tubes, then voltage-dependent resistors (VDR), and finally, transient zener diodes. Between each stage, there are either series inductors or resistors.

Both differential and common mode protection is provided for each channel: across the wire pairs, against the operating voltage ground, and against the earth. The WSP152 also includes noise filtering against HF and RF interference.

Applications
Vaisala recommends using the WSP152 when USB cables are used for permanent connections. The surge protector is always recommended when there is an elevated risk of lightning strikes.

Questions & Answers
No Questions
Did you find what you were looking for?

Select Options

  Products 0 Item Selected
Part #
Description
Price
Stock
Quantity
Vaisala WSP152 Surge Protector
WSP152
Surge protector for host PC (e.g. USB connection). Includes M12 connectors. For use with 220782 and CLB210679.
$565.49
1 Available
