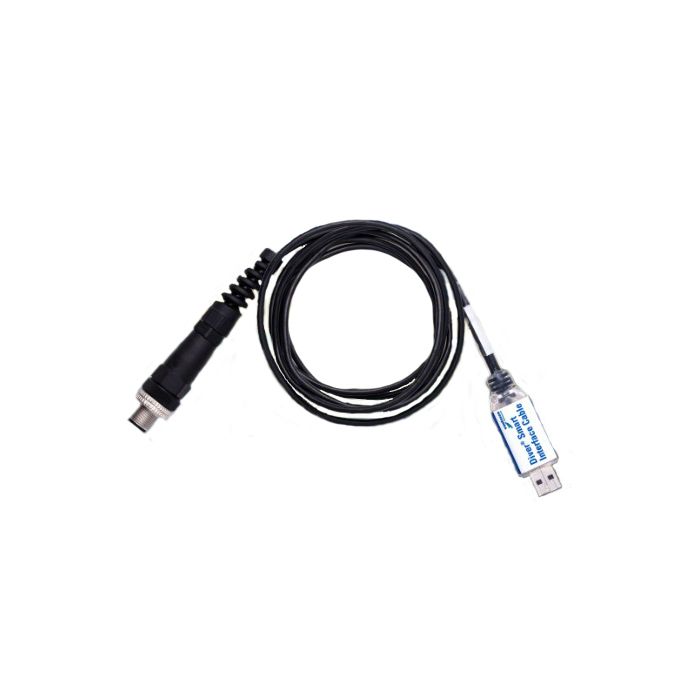

Van Essen Diver Smart Interface Cable
The Van Essen Diver Smart Interface Cable is a communication device to link the Divers deployed on a communication cable (DXT or DDC) to a PC, laptop and/or tablet.
Features
- Real-time atmospheric pressure measurement
- Informational indicators: ready, sending data, receiving data
- Warning indicators: Diver not connected/communicating, cable malfunctioning
Starting At
$275.60
Stock
Check
Availability
Fondriest Exclusives
- Free ground shipping
- Expedited repair and warranty service
- Lifetime technical support
- More
Overview
The Van Essen Diver Smart Interface Cable is a communication device to link the Divers deployed on a communication cable (DXT or DDC) to a PC, laptop and/or tablet. Simply plug the Smart Interface Cable in an available USB port of the computer and connect the other end to the communication cable. The deployed Diver can now be accessed using the free Diver-Office software. Once connected, the Diver can be programmed, settings read, or data downloaded.
Design
The Smart Interface Cable features a barometric sensor that allows for real-time comparison of Diver readings and manual measurements. After connecting the Smart Interface Cable, the Diver can be returned to its original position in the well with the supplied Suspension Plate. The Smart Interface Cable features indicators for sensing if a cable is connected, a Diver is connected to the communication cable or if the communication cable is malfunctioning.
Applications
The Smart Interface Cable can be used for communication cables from 1 meter up to 500 meters in length. The Smart Interface Cable is designed to be used in the field and supports all Divers.
Note: Diver-Office 2017.2 or later must be installed to be able to communicate to the Diver through the Diver Smart Interface Cable.
- (1) Diver Smart Interface Cable
- (1) Suspension plate
Questions & Answers
Select Options
Products
0 Item Selected
Part #
Description
Price
Stock
Quantity
AS346
Diver smart interface cable for AS2xxx Diver Data Cables, USB
$275.60
Check Availability
Accessories
0 Item Selected
Notice: At least 1 product is not available to purchase online
