YOUNG Aspirated Radiation Shields

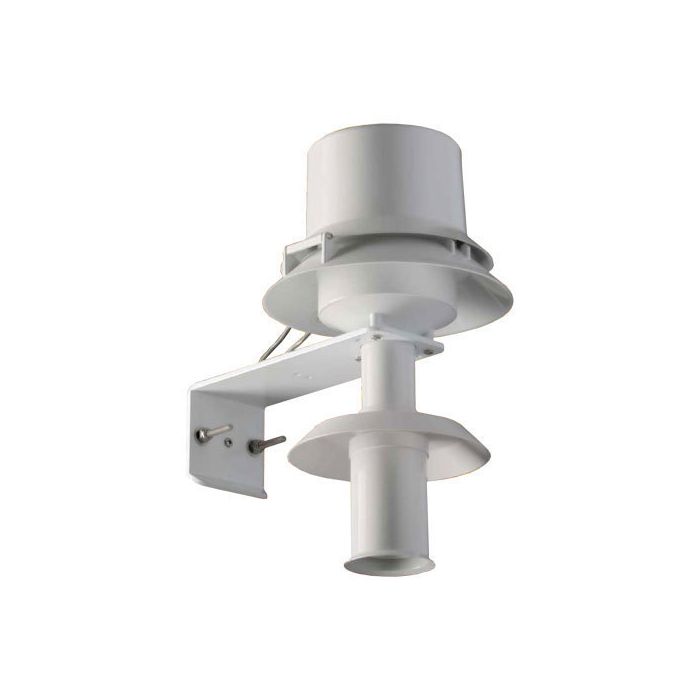

The YOUNG 43502 aspirated radiation shield provides maximum sensor protection from incoming short-wave radiation and outgoing long-wave radiation.

Features

  • Shield employs a triple-walled intake tube and multiple canopy shades
  • Continuous duty blower draws ambient air through the intake tubes and across the sensor
  • Plastic materials provide high reflectivity, low conductivity, and maximum weatherability
Your Price $500.00
Stock Drop Ships From Manufacturer

Overview
The RM Young 43502 shield employs a triple-walled intake tube and multiple canopy shades to isolate the sensor from precipitation and solar radiation. A continuous-duty blower draws ambient air through the intake tubes and across the sensor, minimizing radiation errors. Compact shield components reduce radiation absorption and improve aspiration efficiency. Specially selected plastic materials provide high reflectivity, low conductivity, and maximum weatherability.

Design
The versatile DC blower is designed for continuous duty of more than 80,000 hours (9 years) at 25 degrees C (77 degrees F). Brushless electronic commutation is achieved using dependable solid state circuitry.

Questions & Answers
No Questions
Did you find what you were looking for?

Select Options

  Products 0 Item Selected
Part #
Description
Price
Stock
Quantity
YOUNG Aspirated Radiation Shields
43502
Compact aspirated radiation shield, 115/230 VAC adapter
$500.00
Drop Ships From Manufacturer
