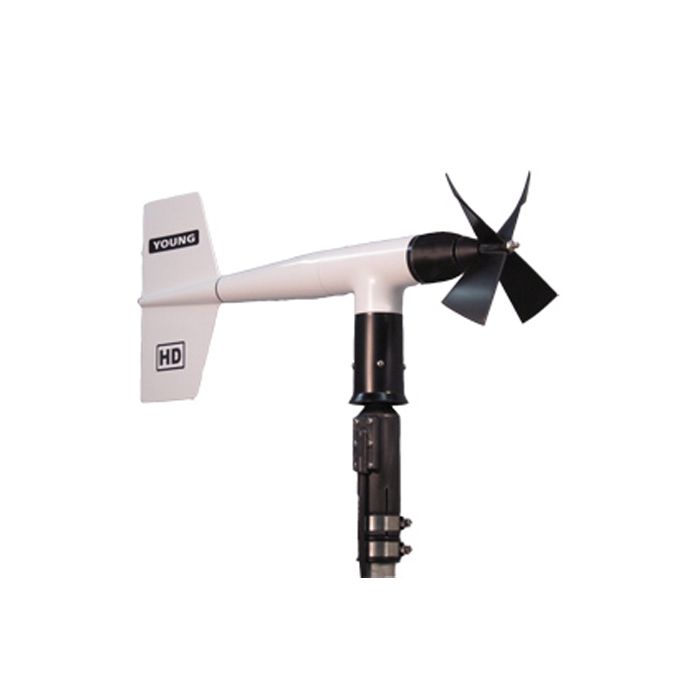

YOUNG Heavy Duty Wind Monitor

The YOUNG 05108 Heavy Duty Wind Monitor has important features for improved survivability in the most severe wind measuring applications.

Features

  • Extremely long-wearing, oversize ceramic bearings to extend service
  • Oversized propeller shaft
  • High pitch propeller & stainless steel locking propeller nut
Starting At $1,433.96
Stock Drop Ships From Manufacturer

Overview
The YOUNG 05108 Heavy Duty Wind Monitor has important features that greatly extend the service life of this popular sensor. It promises improved survivability for the most severe wind-measuring applications.

Durability
The YOUNG HD utilizes extremely long-wearing, oversized ceramic bearings to increase service life many times longer than standard stainless steel bearings. In addition to being more wear-resistant, ceramic is resistant to corrosion in environments that are hostile to steel bearings.

Deployment
The YOUNG 05108 Heavy Duty Wind Monitor also has an oversized propeller shaft, high-pitch propeller, and stainless steel locking propeller nut, all features that enhance the long-term reliability of the sensor. The instrument mounts to a standard 1-inch pipe.

Range:
Wind speed: 0-100 m/s (224 mph)
Azimuth: 360° mechanical, 355° electrical (5° open)
Accuracy:
Wind speed: ± 0.3 m/s (0.6 mph) or 1% of reading
Wind direction: ± 3 degrees
Threshold: Propeller: 1.0 m/s (2.2 mph) Vane: 1.0 m/s (2.2 mph)
Signal Output:
Wind speed: magnetically induced AC voltage, 3 pulses per revolution.
Azimuth: analog DC voltage from conductive plastic potentiometer − resistance 10K Ω , linearity 0.25%, life expectancy − 50 million revolutions
Power Requirement:
Potentiometer excitation: 15 VDC maximum
Dimensions:
Overall height: 37 cm (14.6 in)
Overall length: 55 cm (21.7 in)
Propeller: 18 cm (7 in) diameter
Mounting: 34 mm (1.34 in) diameter (standard 1 inch pipe)
Weight:
Sensor weight: 1.0 kg (2.2 lbs)
Shipping weight: 2.3 kg (5 lbs)

Questions & Answers
No Questions
Did you find what you were looking for?

Select Options

  Products 0 Item Selected
Part #
Description
Price
Stock
Quantity
YOUNG Heavy Duty Wind Monitor
05108
Heavy duty wind speed & direction monitor, 3m cable
$1,433.96
Drop Ships From Manufacturer
YOUNG Heavy Duty Wind Monitor
05108-8M
Heavy duty wind speed & direction monitor, 8m cable
$1,453.96
Drop Ships From Manufacturer
YOUNG Heavy Duty Wind Monitor
05108-12M
Heavy duty wind speed & direction monitor, 12m cable
$1,487.96
Drop Ships From Manufacturer
